1-1825139-6 | Alcoswitch

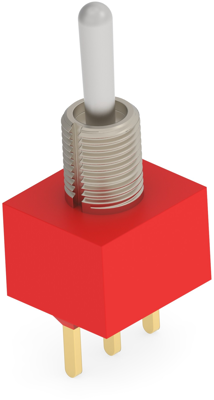

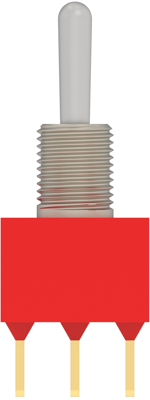

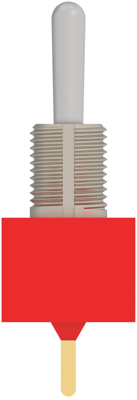

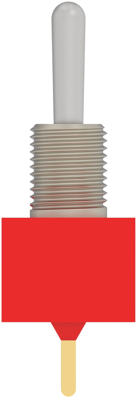

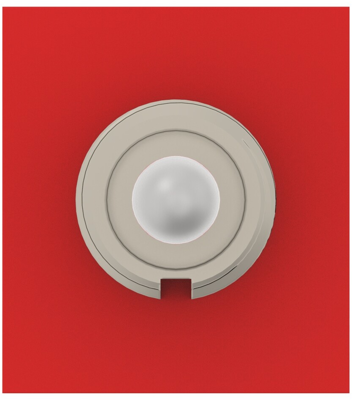

Toggle switch, metal, 2 pole, groping/latching, (On)-Off-(On), 0.4 VA/20 V AC/DC, gold-plated, 1-1825139-6
Unit Price (€ / pc.)
7.3661 € *
Available: 24 pcs.
Available in 5 Days: 465 pcs. - if ordered today
Total Price:
7.37 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3661 €
10 pcs.
6.8425 €
25 pcs.
6.3903 €
50 pcs.
5.8072 €
*incl. VAT plus shipping costs
Subject to prior sale
Toggle Switches, 1-1825139-6, Alcoswitch
Technical Data
- Contact Resistance (mΩ): 10
- Voltage Rating (VAC): 20
- Voltage Rating (VDC): 20
- Insulation Resistance (MΩ): 1000
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping/latching | |
| Pin number | 2 pole | |
| Connection | PCB connection | |
| illuminated | No | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Shift position | (On)-Off-(On) | |
| Type of mounting | central Mounting | |
| Design | vertical | |
| contact surface | gold-plated | |
| Actuator colour | metal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
