1-1825139-2 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-Off-On, 5 A/125 VAC, 28 VDC, silver-plated, 1-1825139-2

Order No.: 19G1863
EAN: 4099889182279
MPN:
1-1825139-2
A203TZQ04
Series: Gemini A

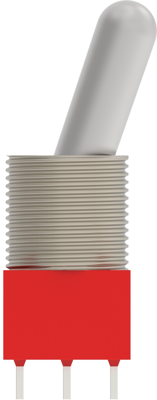

1-1825139-2 Alcoswitch Toggle Switches Image 1

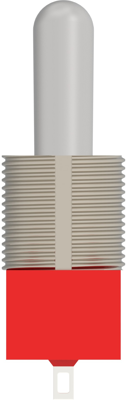

1-1825139-2 Alcoswitch Toggle Switches Image 2

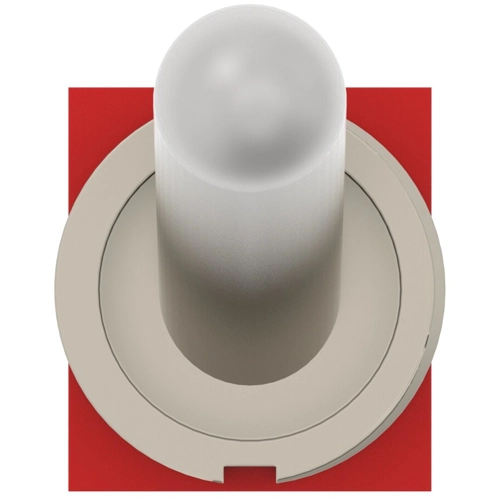

1-1825139-2 Alcoswitch Toggle Switches Image 3

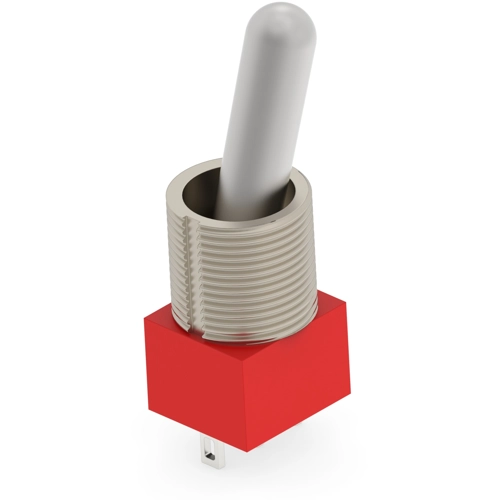

1-1825139-2 Alcoswitch Toggle Switches Image 4
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2,451.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
4.9028 €

Toggle Switch, 1-1825139-2, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Large with Bushing, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On Off On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 15/32-32 UNS-2A, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Unthreaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 17.45 mm, UL Flammability Rating: UL 94V-0

Technical specifications
Filter Property Value
Breaking capacity 5 A/125 VAC, 28 VDC
contact surface silver-plated
Pin number 2 pole
Shift position On-Off-On
illuminated No
Latching switching function latching
Design vertical
Type of mounting central Mounting
Connection solder connection
Actuator colour metal
Logistics
Property Value
Country of origin IN
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
