1-1825138-5 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-On, 5 A/125 VAC, 28 VDC, silver-plated, 1-1825138-5

Order No.: 19G1841
EAN: 4099889182071
MPN:
1-1825138-5
A201P3ZQ04
Series: Gemini A

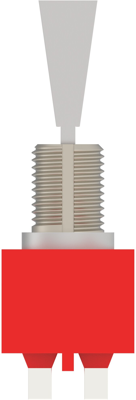

1-1825138-5 Alcoswitch Toggle Switches Image 1

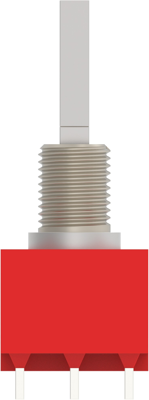

1-1825138-5 Alcoswitch Toggle Switches Image 2

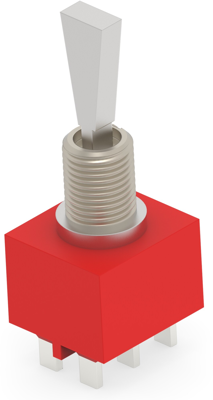

1-1825138-5 Alcoswitch Toggle Switches Image 3

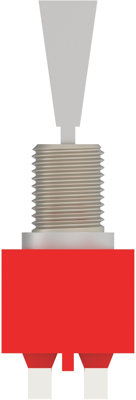

1-1825138-5 Alcoswitch Toggle Switches Image 4

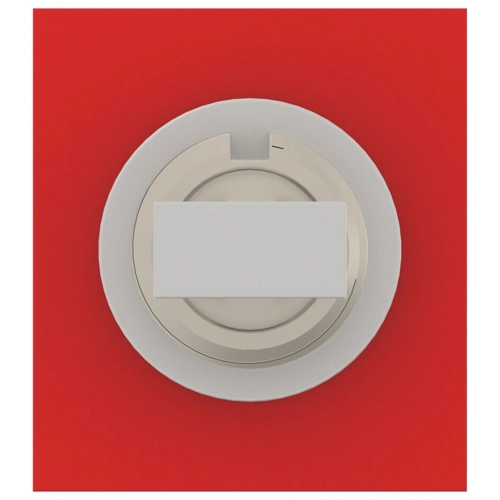

1-1825138-5 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
4.2364 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,118.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
4.2364 €

Toggle Switch, 1-1825138-5, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Large Flat with Bushing, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 12.32 mm, UL Flammability Rating: UL 94V-0

Technical specifications
contact surface silver-plated
Type of mounting central Mounting
Breaking capacity 5 A/125 VAC, 28 VDC
Actuator colour metal
Pin number 2 pole
Design vertical
illuminated No
Connection solder connection
Shift position On-On
Latching switching function latching
Logistics
Country of origin IN
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
