1-1825137-9 | Alcoswitch

Toggle switch, metal, 1 pole, latching, On-Off-On, 0.4 VA/20 V AC/DC, gold-plated, 1-1825137-9

Order No.: 19G1809
EAN: 4099889181784
MPN:
1-1825137-9
A103SYZB04
Series: Gemini A

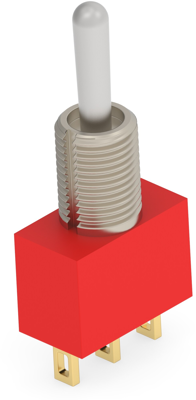

1-1825137-9 Alcoswitch Toggle Switches Image 1

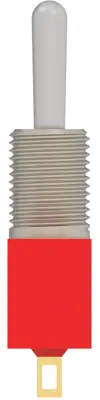

1-1825137-9 Alcoswitch Toggle Switches Image 2

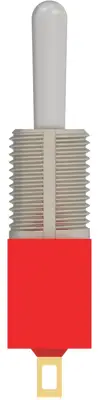

1-1825137-9 Alcoswitch Toggle Switches Image 3

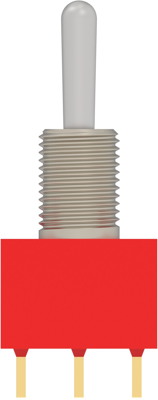

1-1825137-9 Alcoswitch Toggle Switches Image 4

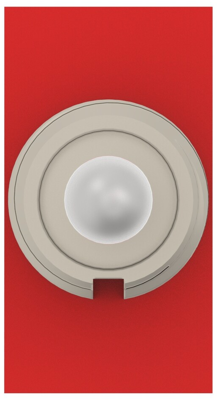

1-1825137-9 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
6.3189 € *
Available in 5 Days: 561 pcs. - if ordered today
Total Price:
6.32 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3189 €
10 pcs.
5.8667 €
25 pcs.
5.4740 €
50 pcs.
4.9742 €
*incl. VAT plus shipping costs
Subject to prior sale

Toggle Switch, 1-1825137-9, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On Off On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Filter Property Value
Latching switching function latching
Pin number 1 pole
Connection solder connection
illuminated No
Breaking capacity 0.4 VA/20 V AC/DC
Shift position On-Off-On
Type of mounting central Mounting
Design vertical
contact surface gold-plated
Actuator colour metal
Logistics
Property Value
Customs tariff number 85365080
Country of origin IN
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
