3-1825910-5 | Alcoswitch

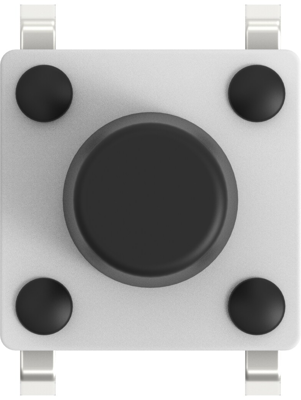

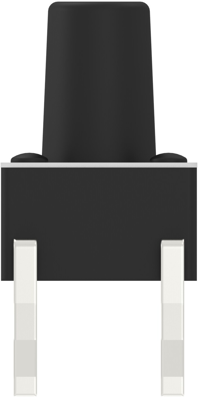

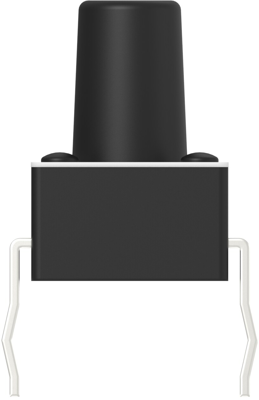

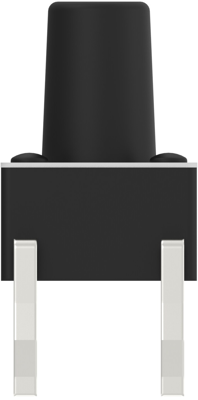

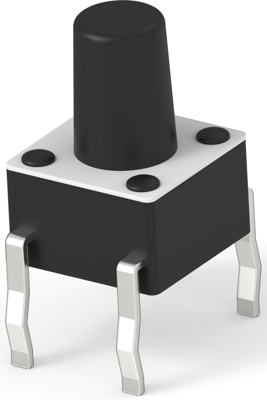

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 4.9 mm), 1.56 N, THT, 3-1825910-5
Unit Price (€ / pc.)
0.1404 € *
Available: 2,274 pcs.
Available in 5 Days: 22,500 pcs. - if ordered today
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1404 €
50 pcs.
0.1297 €
100 pcs.
0.1214 €
250 pcs.
0.1095 €
*incl. VAT plus shipping costs
Subject to prior sale
In-line pushbutton switch,es, type TE Connectivity/Alcoswitch FSMJH.
Horizontal, top actuation; Contact type: NO. Breaking capacity: max. 50 mA/24 VDC. Contact resistance: max. 100 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Actuating force: 160 (±50) g. Contacts: copper alloy, silver-plated. Connections: copper alloy, silver-plated on nickel primer. Housing: nylon 6/6, glass fiber-reinforced, black. Operating temperatures: –35 to +85 °C.
Technical attributes (type, actuator height (A), pushbutton height (B), actuator color): 3-1825910-5, A 4.9. B 8.5 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| actuator length | 4.9 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Height | 8.5 mm | |
| Width | 5.99 mm | |
| Breaking capacity | 50 mA/24 VDC | |
| illuminated | No | |
| Length | 5.99 mm | |
| Contact material | silver-plated | |
| Connection | THT | |
| Actuator colour | black | |
| actuating force | 1.56 N |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
