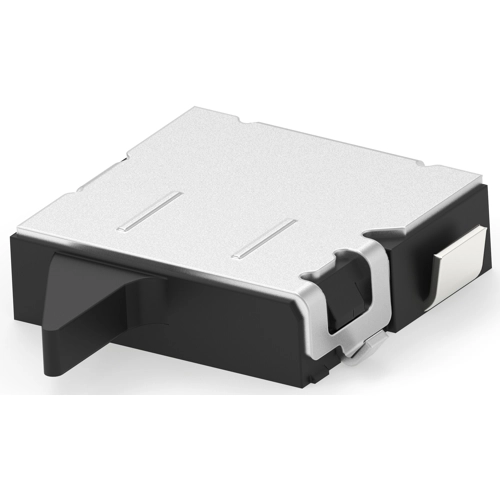

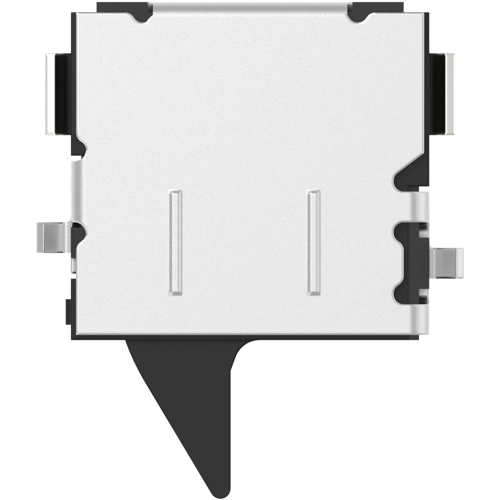

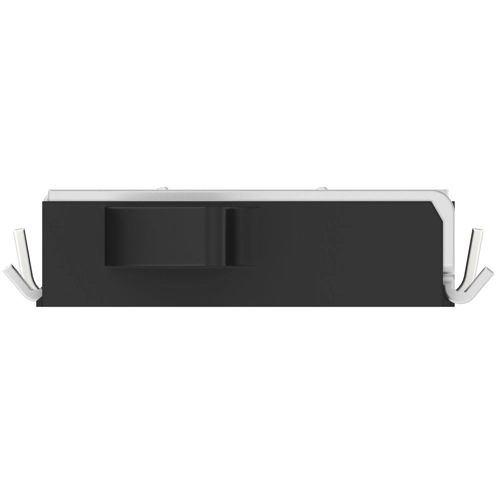

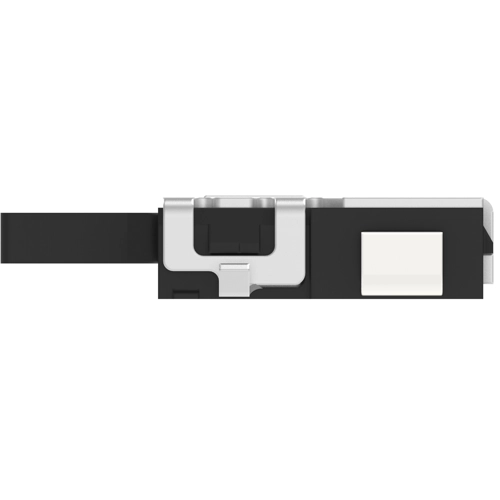

2331386-1 | Alcoswitch
Short-stroke pushbutton, Form B (N/C), 1 mA/5 VDC, unlit , actuator (black), 0.34 N, J-hook, 2331386-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.6188 € *
Available in 12 Days: 9,763 pcs. - if ordered today
Detector switch, 2331386-1, Alcoswitch
Tactile switch, Side actuator style, Phosphor bronze, Silver, Low profile, 1 mA.
Features
- RoHS Compliant
- Halogen and Lead Free
- Sharp detection feeling
- Compact size
Applications
- Automotive
- Instrumentation
- White goods
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form B (N/C) | |
| Breaking capacity | 1 mA/5 VDC | |
| illuminated | No | |
| Actuator colour | black | |
| Contact material | silver-plated | |
| Connection | J-hook | |
| actuating force | 0.34 N | |
| Length | 3.5 mm | |
| Width | 4.18 mm | |
| Height | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
