2-1977223-2 | Alcoswitch
Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24 VDC, unlit , actuator (black), 100 g, SMD, 2-1977223-2
Order No.: 12G516
MPN:
2-1977223-2
FSM8JSMLSTR=6MM TACT SWITCH, SMT 100gf,
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 7,000 pcs. - if ordered today
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3332 €
100 pcs.
0.3094 €
500 pcs.
0.2856 €
1000 pcs.
0.2737 €
*incl. VAT plus shipping costs
Subject to prior sale

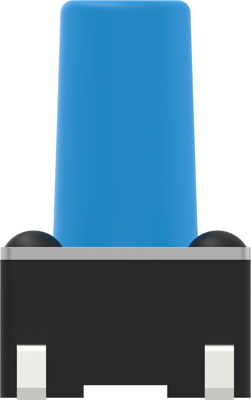

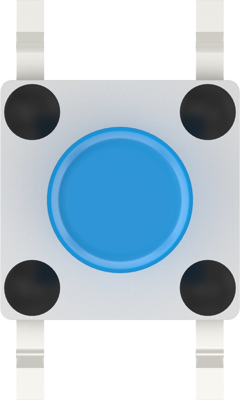

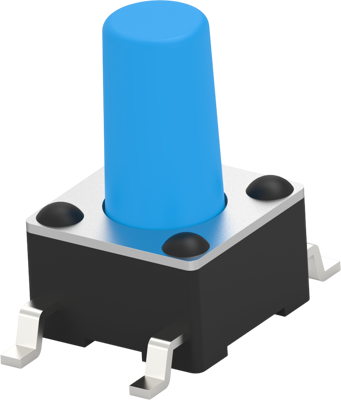

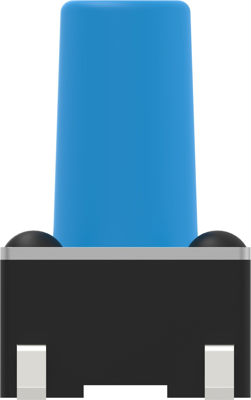

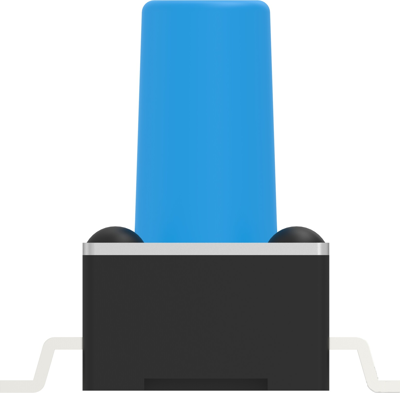

Tactile switch, 2-1977223-2, Alcoswitch
Micro miniature pushbutton tactile switch, FSM, JSM, 6 mm, SMT 100gf.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | silver-plated | |
| Connection | SMD | |
| Actuator colour | black | |
| actuating force | 100 g | |
| Latching switching function | 1 Form A (N/O) | |
| Height | 9.5 mm | |
| illuminated | No | |
| Length | 6 mm | |
| Width | 6 mm | |
| Breaking capacity | 50 mA/24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
