2-1825910-2 | Alcoswitch

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24 VDC, unlit , actuator (white, L 4.4 mm), 1.56 N, THT, 2-1825910-2

Order No.: 12G497
EAN: 4099889205503
MPN:
2-1825910-2
FSM12JH
Series: FSM

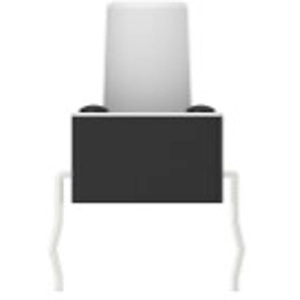

2-1825910-2 Alcoswitch Tactile Switches Image 1
2-1825910-2 Alcoswitch Tactile Switches Image 2
2-1825910-2 Alcoswitch Tactile Switches Image 3
Image may differ
Unit Price (€ / pc.)
0.1012 € *
Available in 5 Days: 57,000 pcs. - if ordered today
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1012 €
250 pcs.
0.0940 €
500 pcs.
0.0869 €
1000 pcs.
0.0785 €
*incl. VAT plus shipping costs
Subject to prior sale

In-line pushbutton switch,es, type TE Connectivity/Alcoswitch FSMJH.

Horizontal, top actuation; Contact type: NO. Breaking capacity: max. 50 mA/24 VDC. Contact resistance: max. 100 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Actuating force: 160 (±50) g. Contacts: copper alloy, silver-plated. Connections: copper alloy, silver-plated on nickel primer. Housing: nylon 6/6, glass fiber-reinforced, black. Operating temperatures: –35 to +85 °C.

Technical attributes (type, actuator height (A), pushbutton height (B), actuator color): 2-1825910-2, A 4.4, B 8.0 mm, white

Technical specifications
Filter Property Value
Latching switching function 1 Form A (N/O)
actuating force 1.56 N
Width 5.99 mm
actuator length 4.4 mm
illuminated No
Contact material silver-plated
Length 5.99 mm
Breaking capacity 50 mA/24 VDC
Height 8 mm
Actuator colour white
Connection THT
Logistics
Property Value
Country of origin PL
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
