1825910-7 | Alcoswitch

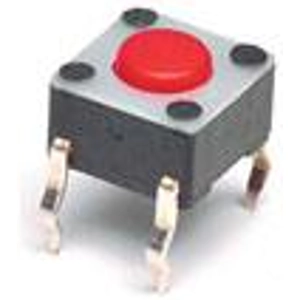

Short-stroke pushbutton, Form A (N/O), 50 mA/24 VDC, unlit , actuator (red, L 1.4 mm), 2.54 N, THT, 1825910-7
Unit Price (€ / pc.)
0.1119 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
11.19 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1119 €
250 pcs.
0.1035 €
500 pcs.
0.0952 €
1000 pcs.
0.0869 €
*incl. VAT plus shipping costs
Subject to prior sale
Tactile Switch, 1825910-7, Alcoswitch
Illuminated: With, Actuator Style: Round, Dust Proof: No, Snap Action: Without, Operating Function: NO, Support Bracket: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: 1, Tactile Switch Voltage Rating: 24 VDC, Actuator Material: PBT, Actuator Color: Red, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Silver, Tactile Switch Contact Current Rating: 50 mA, Termination Type: Printed Circuit Board, Tactile Switch Mounting Type: Through Hole, Tactile Switch Mounting Angle: Vertical, Low Profile: With, Process Sealed: No, Actuator Length: 1.4 mm, Temperature Rating: High °C, Packaging Method: Loose Piece, Comment: (On) indicates momentary position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form A (N/O) | |
| actuating force | 2.54 N | |
| Width | 5.99 mm | |
| actuator length | 1.4 mm | |
| illuminated | No | |
| Contact material | silver-plated | |
| Length | 5.99 mm | |
| Breaking capacity | 50 mA/24 VDC | |
| Height | 5 mm | |
| Actuator colour | red | |
| Connection | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
