1825027-5 | Alcoswitch

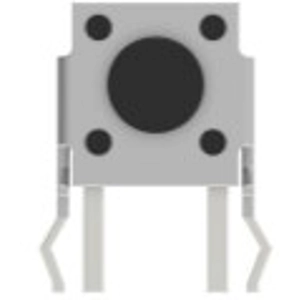

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 1.24 mm), 1.56 N, THT, 1825027-5
Unit Price (€ / pc.)
0.1119 € *
Available: 3,427 pcs.
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1119 €
50 pcs.
0.1035 €
100 pcs.
0.0964 €
250 pcs.
0.0869 €
*incl. VAT plus shipping costs
Subject to prior sale
In-line pushbutton switches, type TE Connectivity/Alcoswitch FSMRAJH.
Vertical, side actuation with round plunger; Contact type: NO. Breaking capacity: max. 50 mA/24 VDC. Contact resistance: max. 100 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Actuating force: 160 (±50) g. Contacts: copper alloy, silver-plated. Connections: copper alloy, silver-plated on nickel primer. Housing: nylon 6/6, black. Operating temperatures: –35 to +85 °C.
Technical attributes (type, actuator length (A), actuator color): 0-1825027-5, A 1.24 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 50 mA/24 VDC | |
| Actuator colour | black | |
| Connection | THT | |
| Latching switching function | 1 Form A (N/O) | |
| actuator length | 1.24 mm | |
| Contact material | silver-plated | |
| actuating force | 1.56 N | |
| Width | 3.68 mm | |
| Height | 7 mm | |
| Length | 7.11 mm | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
