1571296-2 | Alcoswitch
Short-stroke pushbutton, Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 0.9 mm), 1.56 N, gull-wing, 1571296-2
Order No.: 71P2432
EAN: 4099891621803
MPN:
1571296-2
Unit Price (€ / pc.)
0.6188 € *
Available in 5 Days: 1,500 pcs. - if ordered today

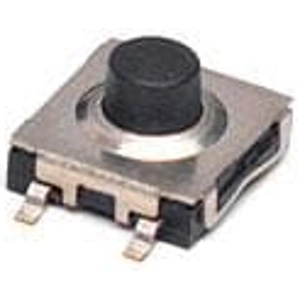

Tactile switch, 1571296-2, Alcoswitch
Tactile switch, Round Actuator Style, Yes, Stainless steel, Silver, Dust Proof, Low profile, 50 mA, 24 VDC, Process Sealed.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form A (N/O) | |
| Breaking capacity | 50 mA/24 VDC | |
| illuminated | No | |
| Actuator colour | black | |
| Contact material | silver-plated | |
| Connection | gull-wing | |
| actuating force | 1.56 N | |
| actuator length | 0.9 mm | |
| Length | 7.3 mm | |
| Width | 7.6 mm | |
| Height | 3.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
