1437566-3 | Alcoswitch

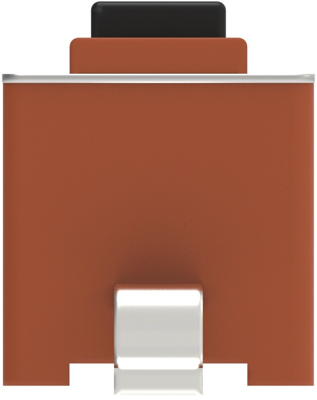

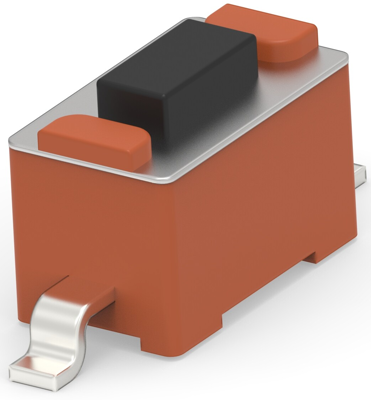

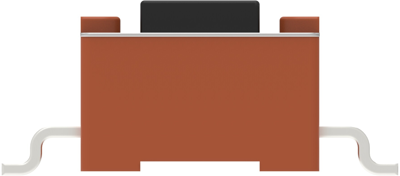

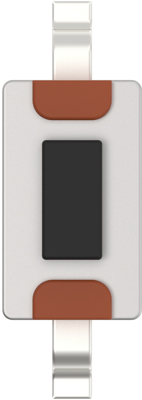

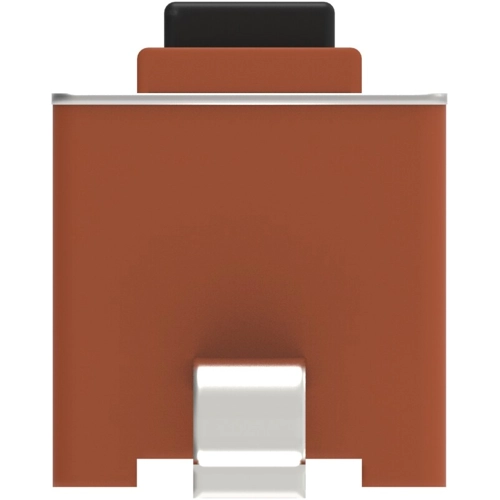

Short-stroke pushbutton, Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 1.07 mm), 1.8 N, gull-wing, 1437566-3
Unit Price (€ / pc.)
0.2118 € *
Available: 1,300 pcs.
Available in 5 Days: 221,312 pcs. - if ordered today
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2118 €
50 pcs.
0.1964 €
100 pcs.
0.1821 €
250 pcs.
0.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
Tactile Switches, 1437566-3, Alcoswitch
Illuminated: No, Actuator Style: Rectangular, Dust Proof: No, Snap Action: Without, Operating Function: Off (On), Support Bracket: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: 1, Tactile Switch Voltage Rating: 24 VDC, Actuator Material: Polyamide, Actuator Color: Black, Contact Base Material: Brass, Switch Contact Plating Material: Silver, Tactile Switch Contact Current Rating: 50 mA, Termination Type: Printed Circuit Board, Tactile Switch Mounting Type: Surface Mount, Tactile Switch Mounting Angle: Vertical, Low Profile: With, Process Sealed: No, Actuator Length: 1.07 mm, Temperature Rating: Standard °C, Packaging Method: Loose Piece, Comment: (On) indicates momentary position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| actuator length | 1.07 mm | |
| Contact material | silver-plated | |
| Breaking capacity | 50 mA/24 VDC | |
| Latching switching function | Form A (N/O) | |
| Length | 6 mm | |
| actuating force | 1.8 N | |
| Connection | gull-wing | |
| Width | 3.5 mm | |
| Height | 4.57 mm | |
| Actuator colour | black | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
