4-2319848-2 | Alcoswitch
DIP switche, Off-On, 12 pole, straight, 0.025 A/24 VDC, 4-2319848-2
Unit Price (€ / pc.)
2.6061 € *
Available in 5 Days: 1,809 pcs. - if ordered today
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6061 €
10 pcs.
2.4276 €
25 pcs.
2.2610 €
50 pcs.
2.0587 €
*incl. VAT plus shipping costs
Subject to prior sale

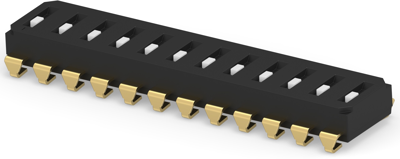

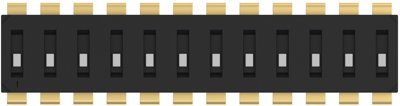

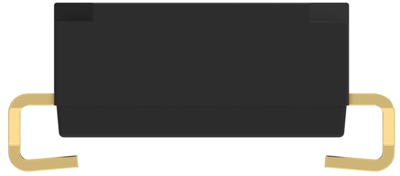

Switch, 4-2319848-2, Alcoswitch
The 4-2319848-2 is designed for space-saving and streamlined manufacturing with full Surface mount products. The end-stackable design saves space on the PCB and allows for large position counts without sacrificing centerline spacing.
Features
- Recessed actuators for design flexibility
- Gold contact plating for high reliability and corrosion resistance
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | J-hook | |
| Actuation | on top | |
| Pin number | 12 pole | |
| Design | straight | |
| Shift position | Off-On | |
| contact surface | gold-plated | |
| Breaking capacity | 0.025 A/24 VDC | |
| Version | DIP switche | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
