3-2319747-0 | Alcoswitch

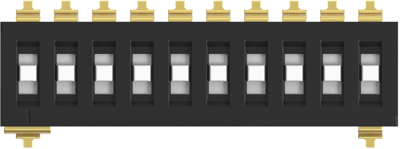

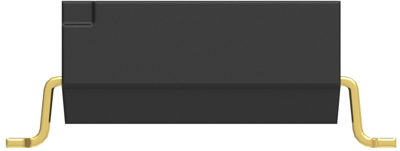

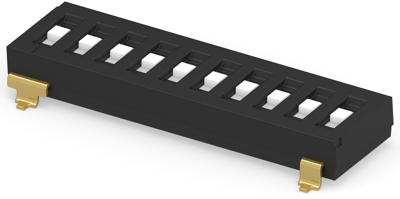

DIP switche, 10 pole, straight, 0.025 A/24 VDC, 3-2319747-0
Unit Price (€ / pc.)
2.6418 € *
Available in 5 Days: 900 pcs. - if ordered today
Switch, 3-2319747-0, Alcoswitch
The 3-2319747-0 is designed for unique coding and streamlined manufacturing with full Surface mount products. The tri-state positioning allows for more advanced address setting on the DIP switch, thus providing more security in the application.
Features
- Recessed actuators for design flexibility
- Gold contact plating for high reliability and corrosion resistance
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | gull-wing | |
| Pin number | 10 pole | |
| Breaking capacity | 0.025 A/24 VDC | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Grid | 2.54 mm | |
| Version | DIP switche | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
