3-1825010-8 | Alcoswitch

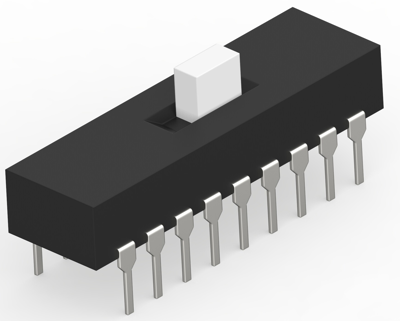

Slide switch, On-On, 2 pole, straight, 0.4 A/20 VDC, 3-1825010-8
Unit Price (€ / pc.)
15.1249 € *
Standard delivery time from the manufacturer is: 84 Weeks
Slide Switch, 3-1825010-8, TE Connectivity
Terminal Configuration: Standard, Actuator Style: Extended, Top, Configuration (Pole-Throw): Double Pole - Double Throw, Number of Actuators: Single, Number of Slide Switch Positions: 6, Operating Function: On On, Slide Switch Voltage Rating: 20 VDC, Actuator Travel: 2.79 mm, Actuator Material: Nylon, Actuator Color: Natural, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .4 A, Switch Contact Plating Material: Gold, Termination Type: PC, PCB Mount Retention: Without, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Actuator Length: 2.79 mm, Stamped Marking: With, UL Flammability Rating: UL 94V-0, Packaging Method: Tube
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | straight | |
| Breaking capacity | 0.4 A/20 VDC | |
| Pin number | 2 pole | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Shift position | On-On | |
| Version | slide switch | |
| Grid | 2.54 mm | |
| Connection | PCB pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
