3-1571999-6 | Alcoswitch

DIP switche, Off-On, 10 pole, straight, 1 A/5 VDC, 3-1571999-6

Order No.: 17G828
EAN: 4099889204391
MPN:
3-1571999-6
ADP1004
Series: ADP

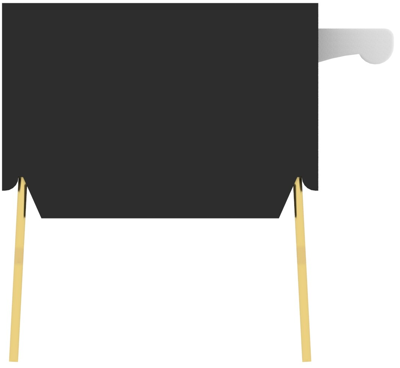

3-1571999-6 Alcoswitch Slide Switches and Coding Switches Image 1

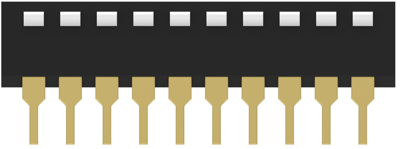

3-1571999-6 Alcoswitch Slide Switches and Coding Switches Image 2

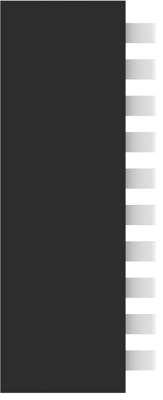

3-1571999-6 Alcoswitch Slide Switches and Coding Switches Image 3

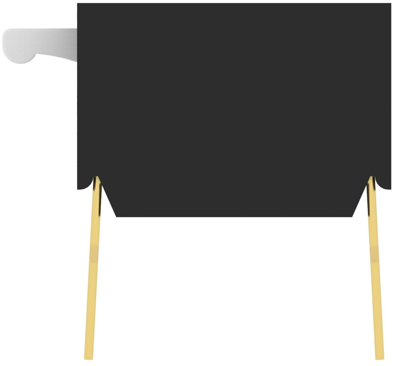

3-1571999-6 Alcoswitch Slide Switches and Coding Switches Image 4

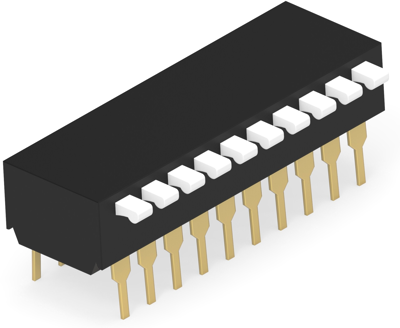

3-1571999-6 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
4,203.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
2250 pcs.
1.8683 €

Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.

With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

PCB connections for side actuation with raised sliders, type ADP.

Technical attributes (type, number of switches, length): 3-1571999-6, 10 switches, L 27.38 mm

Technical specifications
Filter Property Value
Design straight
contact surface gold-plated
Grid 2.54 mm
Version DIP switche
Shift position Off-On
Breaking capacity 1 A/5 VDC
Connection PCB pin
Pin number 10 pole
Actuation lateral
Logistics
Property Value
Country of origin US
Customs tariff number 85365080
Original Packaging Bar with 15 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
