2319848-2 | Alcoswitch

DIP switche, Off-On, 2 pole, straight, 0.025 A/24 VDC, 2319848-2

Order No.: 71P6577
EAN: 4099891653897
MPN:
2319848-2
Series: EDS

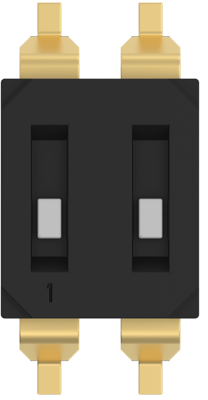

2319848-2 Alcoswitch Slide Switches and Coding Switches Image 1

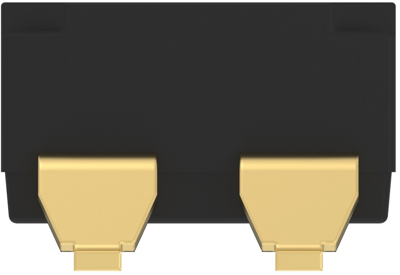

2319848-2 Alcoswitch Slide Switches and Coding Switches Image 2

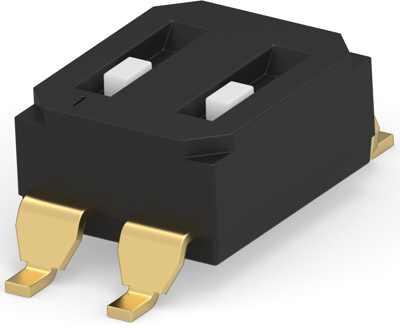

2319848-2 Alcoswitch Slide Switches and Coding Switches Image 3

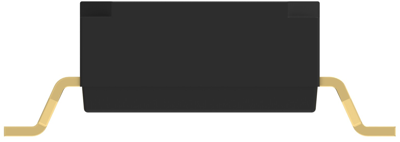

2319848-2 Alcoswitch Slide Switches and Coding Switches Image 4
Image may differ
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1,032.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1045 pcs.
0.9877 €

Switch, 2319848-2, Alcoswitch

The 2319848-2 is designed for space-saving and streamlined manufacturing with full Surface mount products. The end-stackable design saves space on the PCB and allows for large position counts without sacrificing centerline spacing.

Features

  • Recessed actuators for design flexibility
  • Gold contact plating for high reliability and corrosion resistance

Applications

  • Industrial and Automated Control Boards
  • Fire and security systems
  • Thermostats
  • Elevator/Escalator
  • Telecommunication Devices
Technical specifications
Filter Property Value
Grid 2.54 mm
contact surface gold-plated
Version DIP switche
Design straight
Pin number 2 pole
Breaking capacity 0.025 A/24 VDC
Shift position Off-On
Actuation on top
Connection gull-wing
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
