2-435668-8 | Alcoswitch

Name: DIP switche, Off-On, 8 pole, straight, 1 A/40 VDC, 2-435668-8
Brand: Alcoswitch
SKU: 19G1574
Availability: InStock

DIP switche, Off-On, 8 pole, straight, 1 A/40 VDC, 2-435668-8

Order No.: 19G1574

EAN: 4099889205091

MPN:

2-435668-8

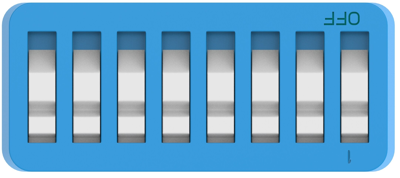

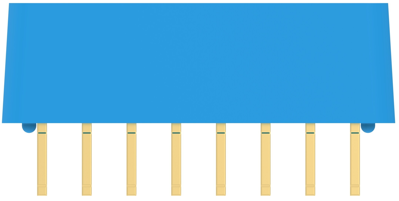

2-435668-8 Alcoswitch Slide Switches and Coding Switches Image 3

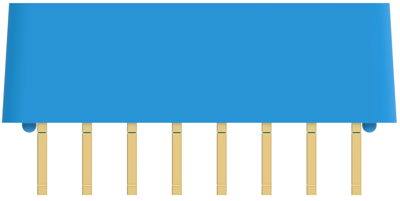

2-435668-8 Alcoswitch Slide Switches and Coding Switches Image 4

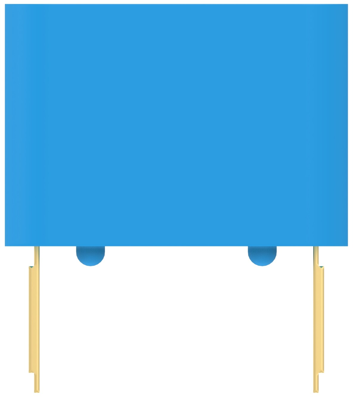

2-435668-8 Alcoswitch Slide Switches and Coding Switches Image 5

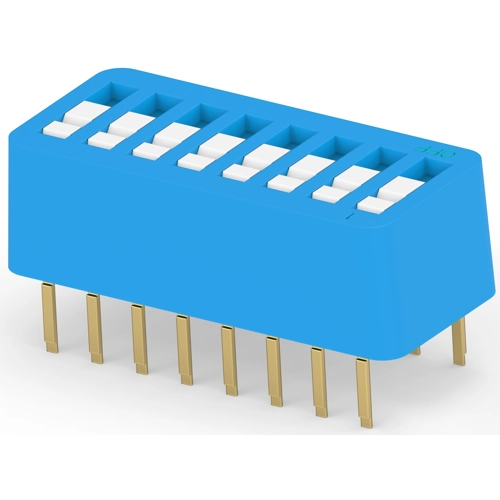

Image may differ

Key Specification:

Version DIP switche

Shift position Off-On

Pin number 8 pole

Actuation on top

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.5823 € *

Available in 5 Days: 4,517 pcs. - if ordered today

Total Price:

253.07 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

DIP Switch, 2-435668-8, Alcoswitch

DIP & SIP Switch Product Type: Switch, Sealed DIP & SIP Switch: Yes, DIP & SIP Switch Type: DIP, Actuator Style: Rocker (Top Actuated), Number of Positions: 8, Number of Switches: 8, Configuration (Pole-Throw): Single Pole - Single Throw, DIP & SIP Switch Voltage Rating: 40 VDC, Seal Type: Tape, Solder Tail Contact Plating: Gold over Nickel, DIP & SIP Switch Contact Mating Area Plating Material: Gold, Auto-Insertable: No, DIP & SIP Switch Contact Current Rating: 1 A, Contact Base Material: Copper Alloy, Termination Post Length: 3.56 mm, Mounting Angle: Vertical, DIP & SIP Switch Mounting Type: Through Hole, Low Profile: Yes, DIP & SIP Switch Housing Color: Blue, DIP & SIP Switch Housing Material: Polyester GF, DIP & SIP Switch Centerline: 2.54 mm, Height: 7.36 mm, Operating Temperature Range: -55 – 105 °C, UL Flammability Rating: UL 94V-0, Packaging Quantity: 14

Technical specifications

Filter	Property	Value
	Connection	PCB pin
	Actuation	on top
	Pin number	8 pole
	Design	straight
	Shift position	Off-On
	contact surface	gold-plated
	Breaking capacity	1 A/40 VDC
	Version	DIP switche
	Grid	2.54 mm
