2-2319848-9 | Alcoswitch
DIP switche, Off-On, 8 pole, straight, 0.025 A/24 VDC, 2-2319848-9
Unit Price (€ / pc.)
2.2967 € *
Available in 5 Days: 889 pcs. - if ordered today
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.0944 €
50 pcs.
1.8802 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale

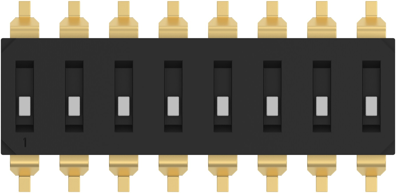

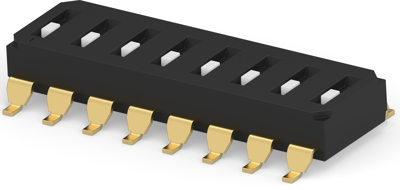

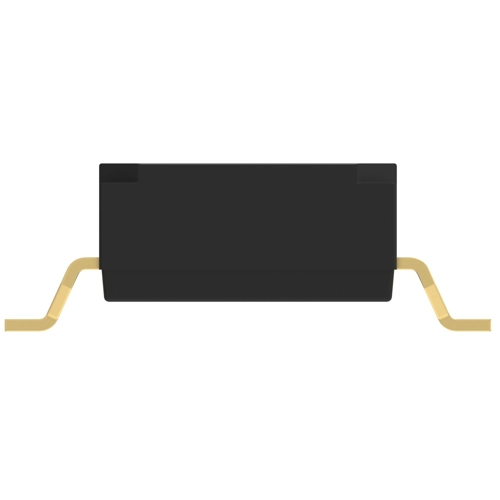

Switch, 2-2319848-9, Alcoswitch
The 2-2319848-9 is designed for space-saving and streamlined manufacturing with full Surface mount products. The end-stackable design saves space on the PCB and allows for large position counts without sacrificing centerline spacing.
Features
- Recessed actuators for design flexibility
- Gold contact plating for high reliability and corrosion resistance
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Breaking capacity | 0.025 A/24 VDC | |
| Grid | 2.54 mm | |
| Pin number | 8 pole | |
| Version | DIP switche | |
| Design | straight | |
| Actuation | on top | |
| Connection | gull-wing | |
| Shift position | Off-On |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
