2-2319848-7 | Alcoswitch

DIP switche, Off-On, 6 pole, straight, 0.025 A/24 VDC, 2-2319848-7

Order No.: 71P5953
EAN: 4099891653828
MPN:
2-2319848-7
Series: EDS

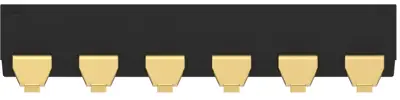

2-2319848-7 Alcoswitch Slide Switches and Coding Switches Image 1

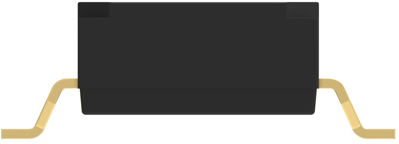

2-2319848-7 Alcoswitch Slide Switches and Coding Switches Image 2

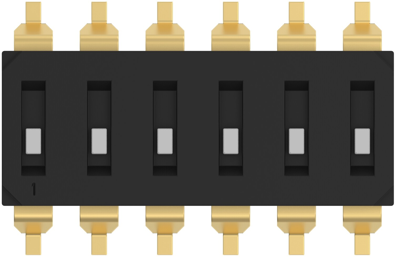

2-2319848-7 Alcoswitch Slide Switches and Coding Switches Image 3

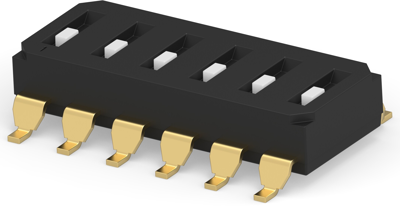

2-2319848-7 Alcoswitch Slide Switches and Coding Switches Image 4
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Available in 5 Days: 1,024 pcs. - if ordered today
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
5 pcs.
1.8802 €
10 pcs.
1.7374 €
25 pcs.
1.6184 €
50 pcs.
1.4637 €
*incl. VAT plus shipping costs
Subject to prior sale

Switch, 2-2319848-7, Alcoswitch

The 2-2319848-7 is designed for space-saving and streamlined manufacturing with full Surface mount products. The end-stackable design saves space on the PCB and allows for large position counts without sacrificing centerline spacing.

Features

  • Recessed actuators for design flexibility
  • Gold contact plating for high reliability and corrosion resistance

Applications

  • Industrial and Automated Control Boards
  • Fire and security systems
  • Thermostats
  • Elevator/Escalator
  • Telecommunication Devices
Technical specifications
Filter Property Value
Grid 2.54 mm
contact surface gold-plated
Version DIP switche
Design straight
Pin number 6 pole
Breaking capacity 0.025 A/24 VDC
Shift position Off-On
Actuation on top
Connection gull-wing
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
