2-2319764-5 | Alcoswitch

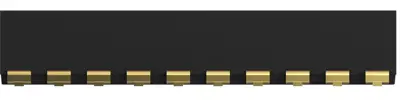

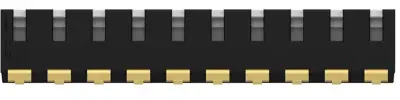

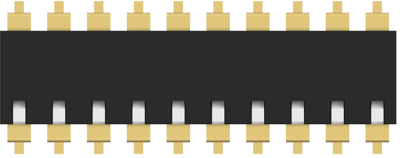

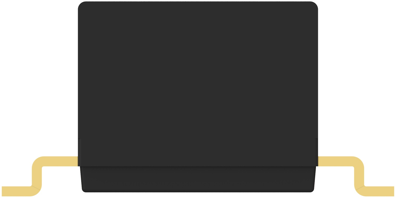

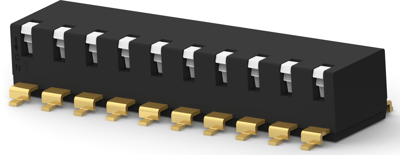

DIP switche, Off-On, 10 pole, straight, 0.025 A/24 VDC, 2-2319764-5
Unit Price (€ / pc.)
3.2249 € *
Available in 5 Days: 756 pcs. - if ordered today
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.9988 €
25 pcs.
2.7965 €
50 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale
Switch, 2-2319764-5, Alcoswitch
The 2-2319764-5 is designed for space-saving and streamlined manufacturing with full Surface mount products.
Features
- Gold contact plating for high reliability and corrosion resistance
- Piano-style actuators for edge of PCB mounting of switch
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Shift position | Off-On | |
| Breaking capacity | 0.025 A/24 VDC | |
| Grid | 2.54 mm | |
| Design | straight | |
| Connection | gull-wing | |
| Pin number | 10 pole | |
| Version | DIP switche | |
| Actuation | lateral |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
