2-1571999-6 | Alcoswitch

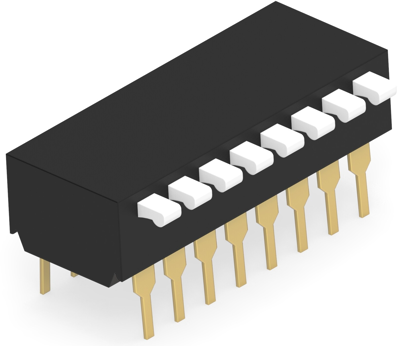

DIP switche, Off-On, 8 pole, straight, 1 A/5 VDC, 2-1571999-6
Unit Price (€ / pc.)
2.3324 € *
Available: 940 pcs.
Available in 5 Days: 26,576 pcs. - if ordered today
Total Price:
11.66 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3324 €
10 pcs.
2.1539 €
25 pcs.
2.0111 €
50 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale
Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.
With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

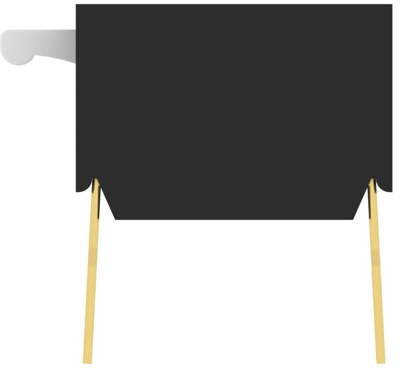

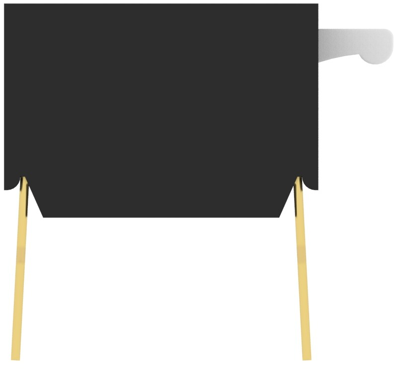

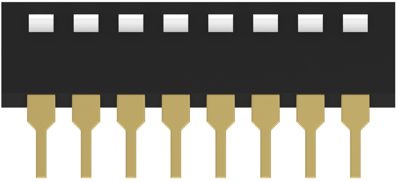

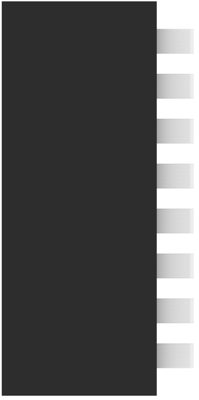

PCB connections for side actuation with raised sliders, type ADP.
Technical attributes (type, number of switches, length): 2-1571999-6, 8 switches, L 22.30 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 8 pole | |
| Version | DIP switche | |
| Connection | PCB pin | |
| Breaking capacity | 1 A/5 VDC | |
| Shift position | Off-On | |
| Design | straight | |
| contact surface | gold-plated | |
| Actuation | lateral |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
