1825289-2 | Alcoswitch
Slide switch, On-On, 2 pole, straight, 0.4 A/20 VDC, 1825289-2
Unit Price (€ / pc.)
6.1047 € *
Available in 5 Days: 1,549 pcs. - if ordered today
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1047 €
10 pcs.
5.6763 €
25 pcs.
5.2955 €
50 pcs.
4.8195 €
*incl. VAT plus shipping costs
Subject to prior sale

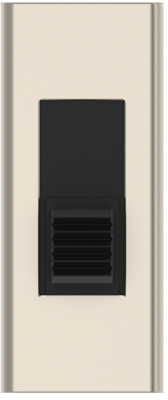

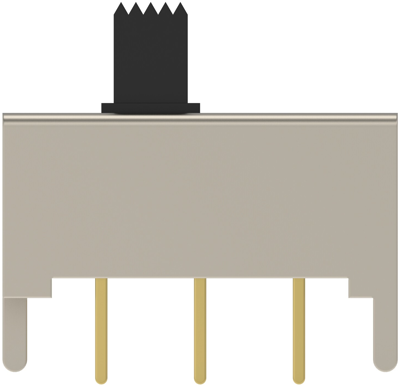

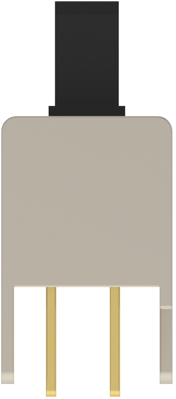

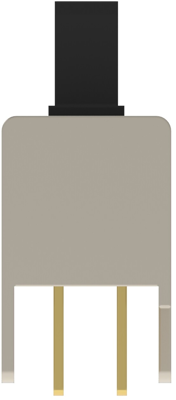

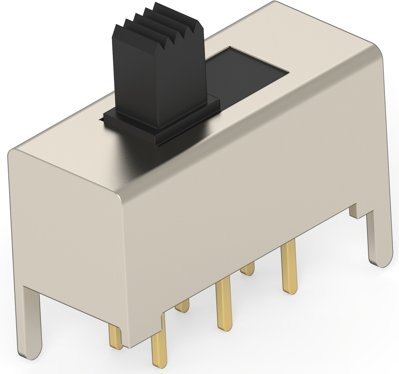

Slide switch, 1825289-2, Alcoswitch
Slide switch, Double Pole-Double Throw Configuration (Pole-Throw), Vertical, Copper alloy, Single actuator, 2 Position, On None On.
Features
- Low profile
- Instrumentation grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Shift position | On-On | |
| Breaking capacity | 0.4 A/20 VDC | |
| Grid | 4 mm | |
| Design | straight | |
| Connection | PCB pin | |
| Pin number | 2 pole | |
| Version | slide switch | |
| Actuation | on top |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
