1825057-1 | Alcoswitch

DIP switche, Off-On, 2 pole, straight, 1 A/5 VDC, 1825057-1

Order No.: 17G750
EAN: 4099889204230
MPN:
1825057-1
ADE0204
Series: ADE

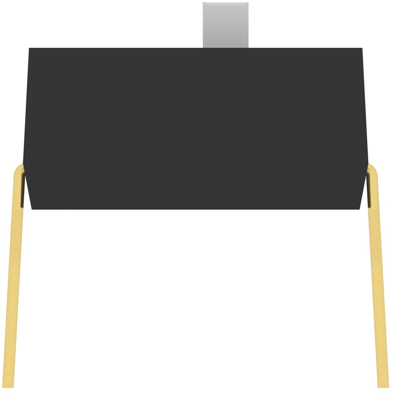

1825057-1 Alcoswitch Slide Switches and Coding Switches Image 1

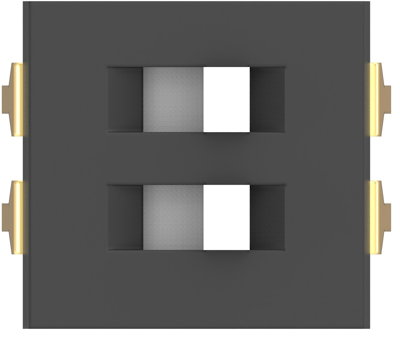

1825057-1 Alcoswitch Slide Switches and Coding Switches Image 2

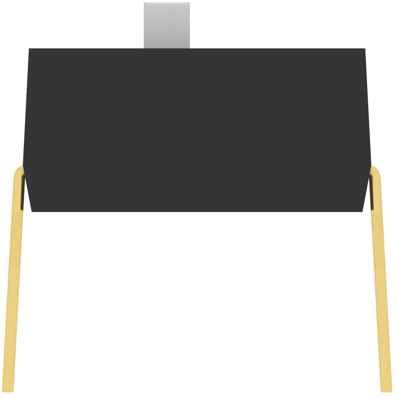

1825057-1 Alcoswitch Slide Switches and Coding Switches Image 3

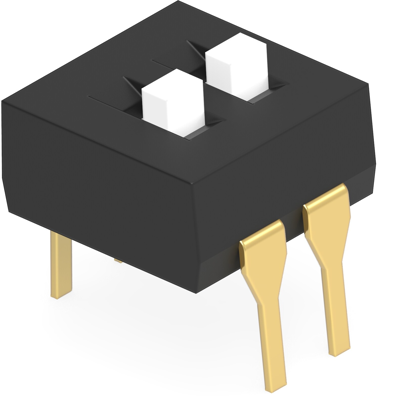

1825057-1 Alcoswitch Slide Switches and Coding Switches Image 4

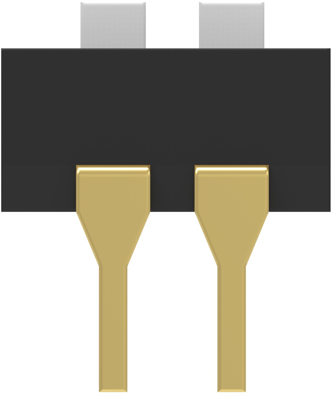

1825057-1 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
0.9520 € *
Available: 280 pcs.
Available in 5 Days: 3,780 pcs. - if ordered today
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9520 €
10 pcs.
0.8806 €
25 pcs.
0.8211 €
50 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.

With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

PCB connections for top actuation with protruding slides, type ADE.

Technical attributes (type, number of switches, length): 0-1825057-1, 2 switches, L 7.06 mm

Technical specifications
Filter Property Value
Grid 2.54 mm
contact surface gold-plated
Version DIP switche
Design straight
Pin number 2 pole
Breaking capacity 1 A/5 VDC
Shift position Off-On
Actuation on top
Connection PCB pin
Logistics
Property Value
Country of origin GB
Customs tariff number 85365080
Original Packaging Bar with 60 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
