1825002-9 | Alcoswitch

DIP switche, Off-On, 6 pole, straight, 1 A/5 VDC, 1825002-9

Order No.: 17G784
EAN: 4099889204308
MPN:
1825002-9
ADF0604
Series: ADF

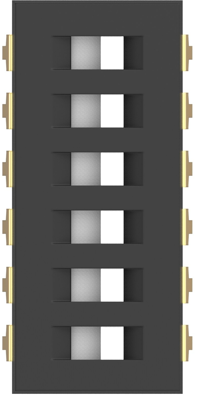

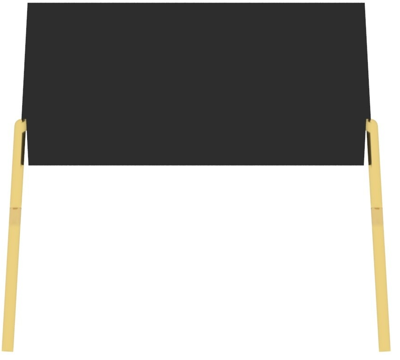

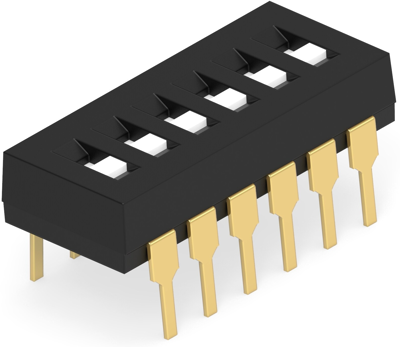

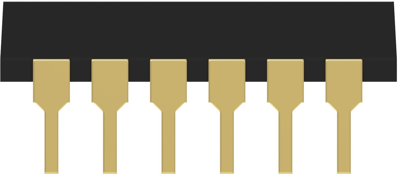

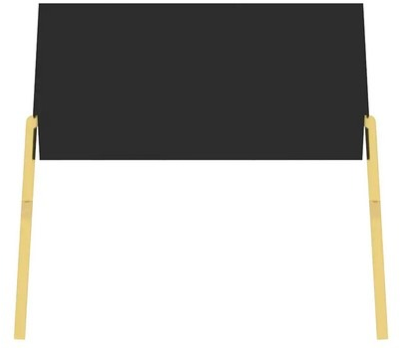

1825002-9 Alcoswitch Slide Switches and Coding Switches Image 1
1825002-9 Alcoswitch Slide Switches and Coding Switches Image 2
1825002-9 Alcoswitch Slide Switches and Coding Switches Image 3
1825002-9 Alcoswitch Slide Switches and Coding Switches Image 4
1825002-9 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.3923 € *
Available in 5 Days: 4,945 pcs. - if ordered today
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
10 pcs.
1.2733 €
50 pcs.
1.1424 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale

DIP switch, 1825002-9, ALCOSWITCH

The 1825002-9 is designed for space-saving and streamlined manufacturing with high contact pressure allowing for aqueous cleaning without the need for tape sealing. It has through-hole mounting type with flush actuator design.

Features

  • Gold contact plating for high reliability and corrosion resistance

Applications

  • Industrial and automated control boards
  • Fire and security systems
  • Thermostats
  • Elevator
  • Telecommunication devices
Technical specifications
Filter Property Value
Version DIP switche
Pin number 6 pole
Connection PCB pin
Breaking capacity 1 A/5 VDC
Design straight
contact surface gold-plated
Shift position Off-On
Grid 2.54 mm
Actuation on top
Logistics
Property Value
Country of origin TH
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
