1571999-6 | Alcoswitch

DIP switche, Off-On, 4 pole, straight, 1 A/5 VDC, 1571999-6

Order No.: 17G822
EAN: 4099889204360
MPN:
1571999-6
ADP0404
Series: ADP

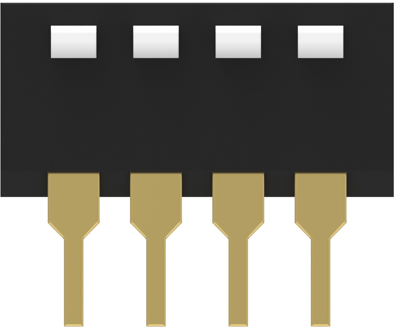

1571999-6 Alcoswitch Slide Switches and Coding Switches Image 1

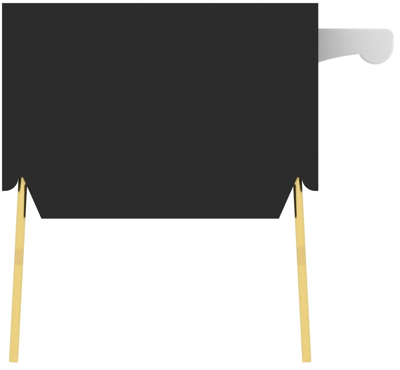

1571999-6 Alcoswitch Slide Switches and Coding Switches Image 2

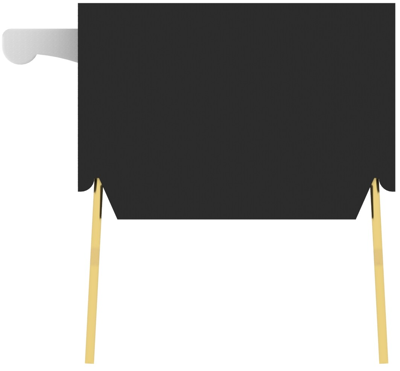

1571999-6 Alcoswitch Slide Switches and Coding Switches Image 3

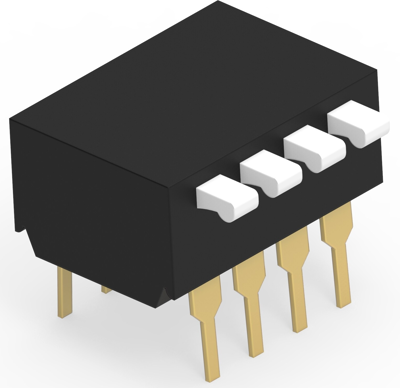

1571999-6 Alcoswitch Slide Switches and Coding Switches Image 4

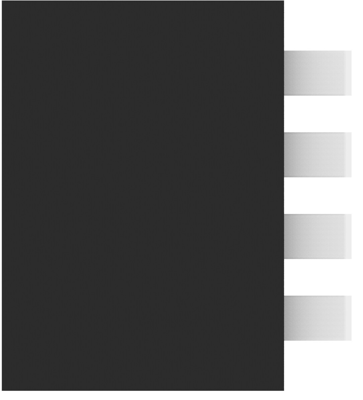

1571999-6 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 1,439 pcs.
Available in 5 Days: 14,279 pcs. - if ordered today
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4875 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale

Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.

With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

PCB connections for side actuation with raised sliders, type ADP.

Technical attributes (type, number of switches, length): 0-1571999-6, 4 switches, L 12.14 mm

Technical specifications
Filter Property Value
contact surface gold-plated
Version DIP switche
Grid 2.54 mm
Actuation lateral
Shift position Off-On
Design straight
Connection PCB pin
Breaking capacity 1 A/5 VDC
Pin number 4 pole
Logistics
Property Value
Original Packaging Bar with 35 pieces
Country of origin US
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
