1571983-1 | Alcoswitch
DIP switche, Off-On, 2 pole, straight, 100 mA/50 VDC, 1571983-1
Unit Price (€ / pc.)
1.7850 € *
Available: 1,180 pcs.
Available in 5 Days: 8,402 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6541 €
25 pcs.
1.5470 €
50 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

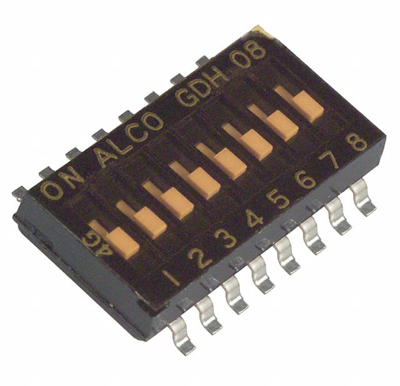

Coding rocker switches, type TE Connectivity/Alcoswitch GDR../GDH.
DiL version, with submerged rockers and PCB or SMD terminals; Breaking capacity: 25 mA/ 24 VDC (on-state), 100 mA/50 VDC (off-state). Contact resistance: max. 100 mohm. Operating temperatures: –30 °C to +85 °C. Contacts and terminals: copper alloy, gold-plated on nickel primer. Actuating force: max. 600 g.
With SMD terminals, type GDH.
Technical attributes (type, number of switches, length (L)): 0-1571983-1, 2 switches, L 3.66 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | Off-On | |
| Actuation | on top | |
| Breaking capacity | 100 mA/50 VDC | |
| Pin number | 2 pole | |
| contact surface | gold-plated | |
| Connection | gull-wing | |
| Grid | 1.27 mm | |
| Design | straight | |
| Version | DIP switche |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
