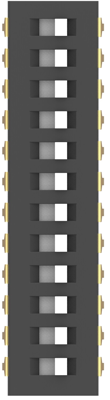

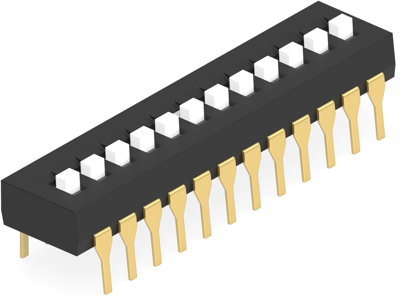

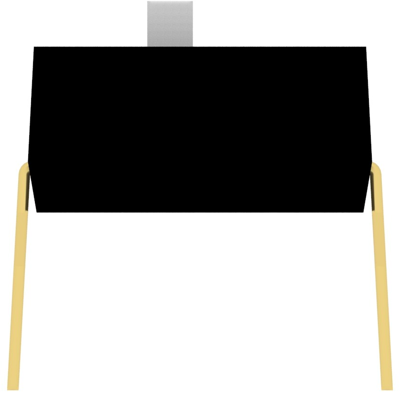

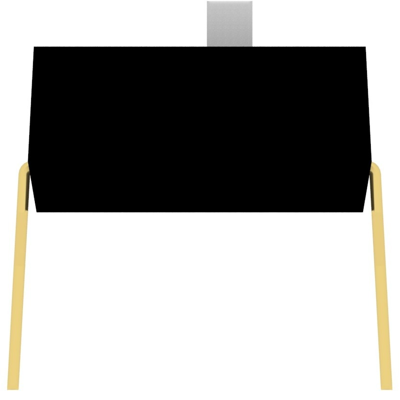

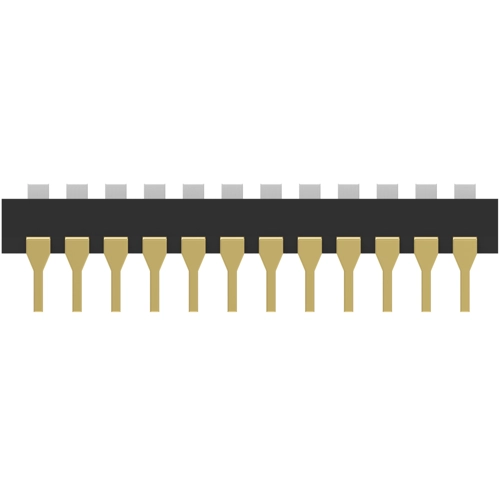

1-1825057-0 | Alcoswitch
DIP switche, Off-On, 12 pole, straight, 1 A/5 VDC, 1-1825057-0
Unit Price (€ / pc.)
3.2487 € *
Available in 5 Days: 2,388 pcs. - if ordered today
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
2.9869 €
50 pcs.
2.6894 €
100 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.
With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.
PCB connections for top actuation with protruding slides, type ADE.
Technical attributes (type, number of switches, length): 1-1825057-0, 12 switches, L 32.51 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Breaking capacity | 1 A/5 VDC | |
| Grid | 2.54 mm | |
| Pin number | 12 pole | |
| Version | DIP switche | |
| Design | straight | |
| Actuation | on top | |
| Connection | PCB pin | |
| Shift position | Off-On |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85365080 |
| Original Packaging | Bar with 14 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
