1-1825010-3 | Alcoswitch

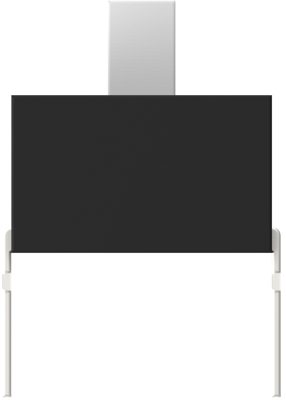

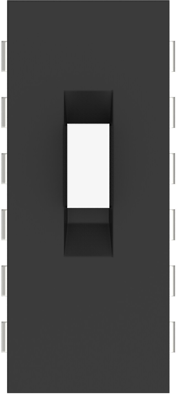

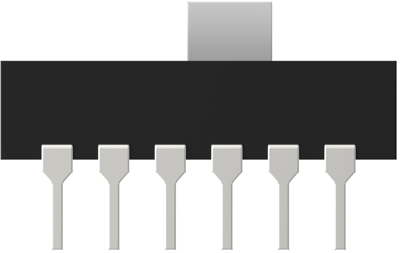

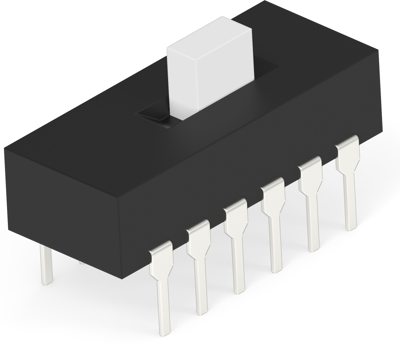

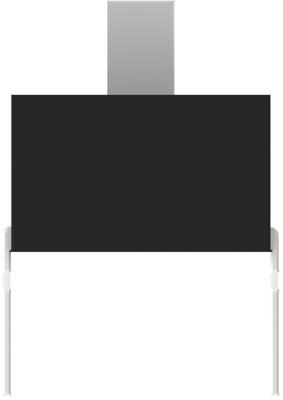

Slide switch, On-On, 4 pole, straight, 300 mA/115 VAC/28 VDC, 1-1825010-3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.8742 € *
Available: 144 pcs.
Total Price:
16.87 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8742 €
5 pcs.
16.0055 €
10 pcs.
14.9702 €
25 pcs.
13.6493 €
*incl. VAT plus shipping costs
Subject to prior sale
Slide switches, type TE Connectivity/Alcoswitch ASE.
For PCB mounting; Contact type: CO. Contact rating: 300 mA/115 VAC. Contact resistance: max. 40 mohm. Insulation resistance: min. 1000 Mohm. Contacts material: copper alloy, silver-plated on nickel primer. Housing: PCT, UL 94 V-0, black. Slider: Nylon, UL 94 V-0, plain. Operating temperatures: - 40 to +80 °C.
With top slider.
Technical attributes (type, number of poles, switch length (dimension A), contact finishing material): 1-1825010-3, 4-pole, A 17.78 mm, silver-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | slide switch | |
| Shift position | On-On | |
| Pin number | 4 pole | |
| Actuation | on top | |
| Design | straight | |
| Connection | PCB pin | |
| contact surface | silver-plated | |
| Grid | 2.54 mm | |
| Breaking capacity | 300 mA/115 VAC/28 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
