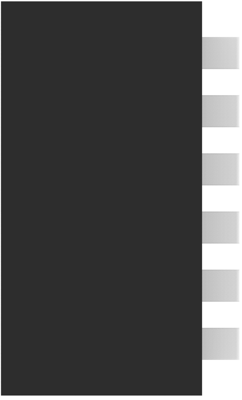

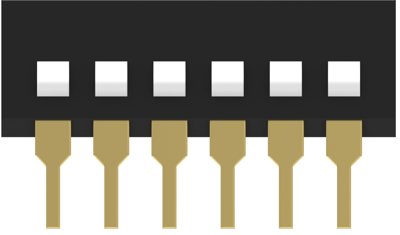

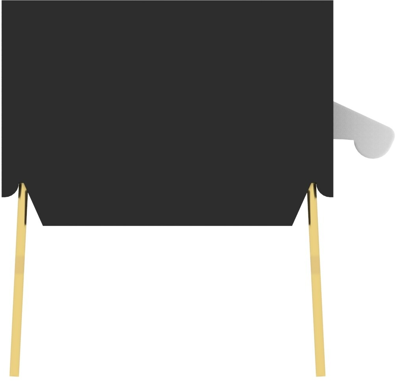

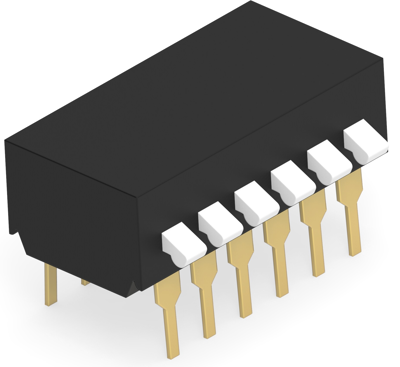

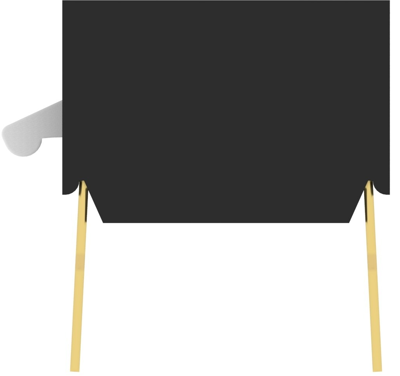

1-1571999-6 | Alcoswitch
DIP switche, Off-On, 6 pole, straight, 1 A/5 VDC, 1-1571999-6
Unit Price (€ / pc.)
1.9040 € *
Available: 170 pcs.
Available in 5 Days: 1,467 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale
Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.
With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.
PCB connections for side actuation with raised sliders, type ADP.
Technical attributes (type, number of switches, length): 1-1571999-6, 6 switches, L 17.22 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | Off-On | |
| Actuation | lateral | |
| Breaking capacity | 1 A/5 VDC | |
| Pin number | 6 pole | |
| contact surface | gold-plated | |
| Connection | PCB pin | |
| Grid | 2.54 mm | |
| Design | straight | |
| Version | DIP switche |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
