1-1571983-3 | Alcoswitch
DIP switche, Off-On, 10 pole, straight, 100 mA/24 VDC, 1-1571983-3
Unit Price (€ / pc.)
4.2840 € *
Available in 5 Days: 38,888 pcs. - if ordered today
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
10 pcs.
3.9746 €
25 pcs.
3.7128 €
50 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

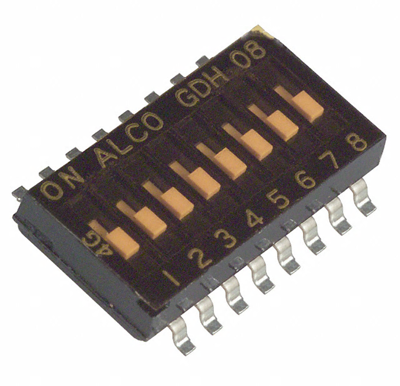

Coding rocker switches, type TE Connectivity/Alcoswitch GDR../GDH.
DiL version, with submerged rockers and PCB or SMD terminals; Breaking capacity: 25 mA/ 24 VDC (on-state), 100 mA/50 VDC (off-state). Contact resistance: max. 100 mohm. Operating temperatures: –30 °C to +85 °C. Contacts and terminals: copper alloy, gold-plated on nickel primer. Actuating force: max. 600 g.
With SMD terminals, type GDH.
Technical attributes (type, number of switches, length (L)): 1-1571983-3, 10 switches, L 13.82 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | gull-wing | |
| Actuation | on top | |
| Pin number | 10 pole | |
| Design | straight | |
| Shift position | Off-On | |
| contact surface | gold-plated | |
| Breaking capacity | 100 mA/24 VDC | |
| Version | DIP switche | |
| Grid | 1.27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
