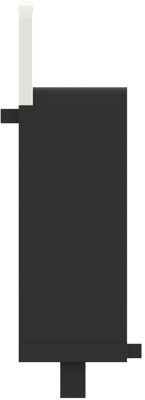

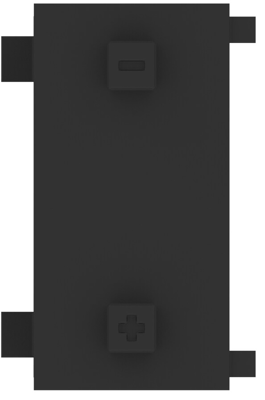

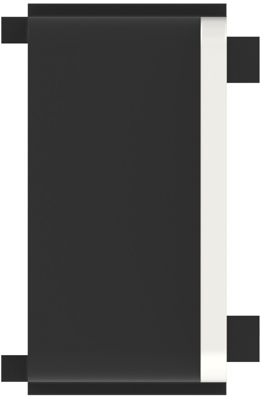

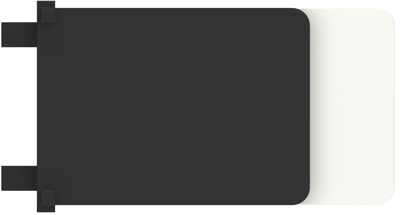

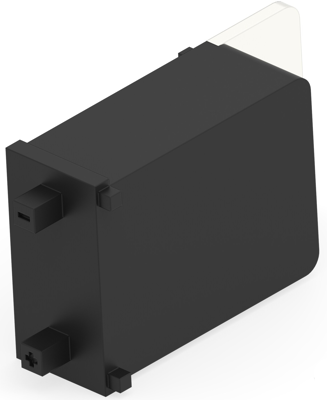

1-1437601-8 | Alcoswitch
Rotary coding/pressure switch, 10 pole, BCD, straight, 0.4 VA/20 V AC/DC, 1-1437601-8
Order No.: 19G1527
EAN: 4099889205077
MPN:
1-1437601-8
PICOD137AK2
Unit Price (€ / pc.)
38.1038 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: 20 Weeks **
Total Price:
38.10 € *
Price list
Quantity
Price per unit*
1 pcs.
38.1038 €
10 pcs.
35.4382 €
25 pcs.
32.6060 €
50 pcs.
29.6667 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pushwheel Switch, 1-1437601-8, Alcoswitch
Product Type: Switch, Code Type: BCD Complement, Number of Pushwheel Switch Positions: 10, Repeating Readout: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Contact Base Material: Copper Alloy, Pushwheel Switch Contact Current Rating: .4 VA, Termination Type: Card Edge Tabs, Pushwheel Switch Mounting Type: Snap Detent, Pushwheel Switch Mounting Location: Front, Wheel Markings: 0-9
Technical specifications
| contact surface | gold-plated | |
| Coding | BCD | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Pin number | 10 pole | |
| Version | rotary coding/pressure switch | |
| Design | straight | |
| Actuation | in front | |
| Connection | solder connection |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
