1977068-1 | Alcoswitch

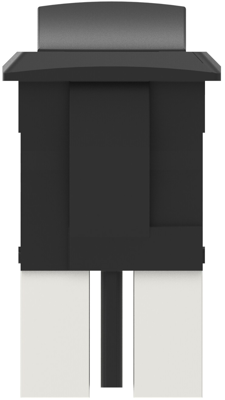

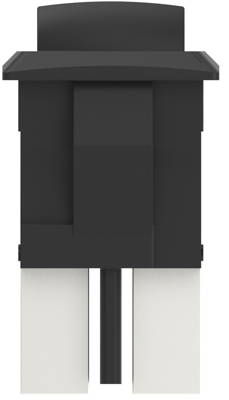

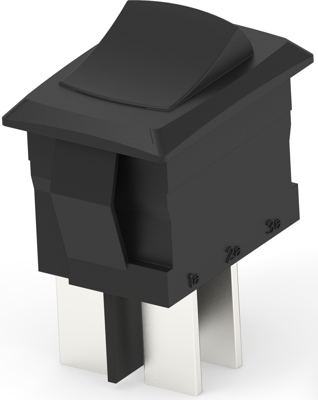

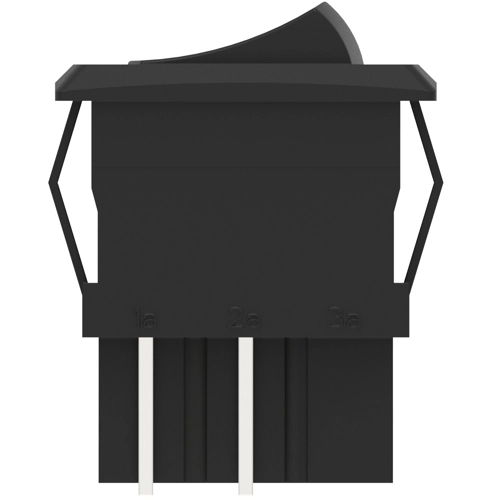

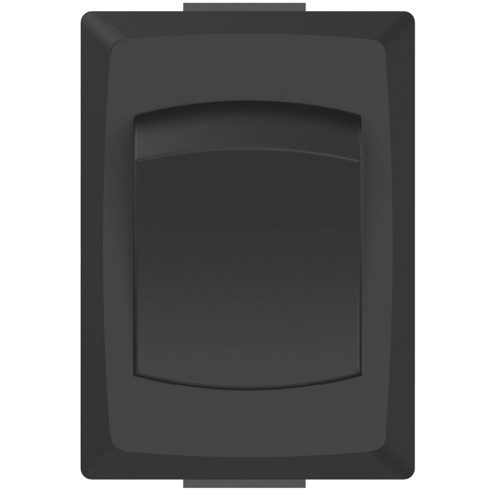

Rocker switch, black, 2 pole, On-Off, off switch, 6 A/125 VAC, unlit, unprinted, 1977068-1
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 26 Weeks
Rocker Switch, 1977068-1, TE Connectivity
Product Type: Switch, Rocker Switch Type: Power, Lamp: Without, Rocker Switch LED: Without, Actuator Type: Top, Indicator/Imprint Legend: None, Panel Cutout Size: 13 x 19.2 mm, Configuration (Pole-Throw): Double Pole - Single Throw, Operating Function: On Off, Rocker Switch Voltage Rating: 125 VAC, Beveled Frame Color: Black, Actuator Color: Black, Terminal Tab Width: 4.75 mm, Switch Contact Plating Material: Silver, Rocker Switch Contact Current Rating: 6 A,12 A, Termination Type: Quick Connect, Mounting Angle: Vertical, Rocker Switch Mounting Type: Panel, Process Sealed: No, UL Listed: File No. E46765
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | off switch | |
| min. Geräteausschnitt | 13 x 19.2 mm | |
| Breaking capacity | 6 A/125 VAC | |
| Shift position | On-Off | |
| illuminated | No | |
| Design | rectangular | |
| Connection | quick connection | |
| Printed | No | |
| Actuator colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
