1571079-9 | Alcoswitch

Rocker switch, black, 1 pole, On-Off-On, changeover switch, 16 A/125 VAC, unlit, printed, 1571079-9

Order No.: 39P1884
EAN: 4099889186727
MPN:
1571079-9
PRASD3-16F-BB0GW
Series: PR

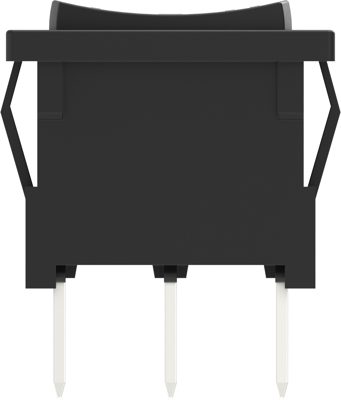

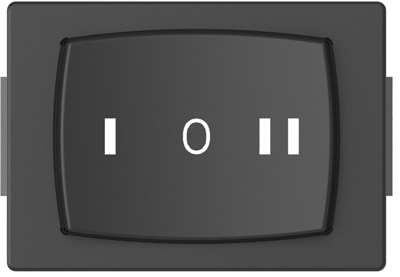

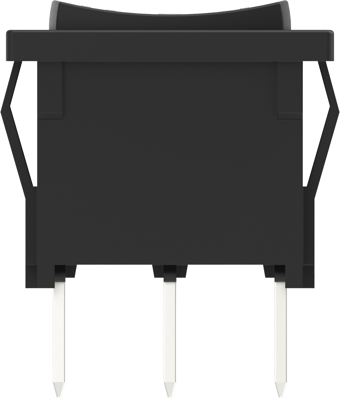

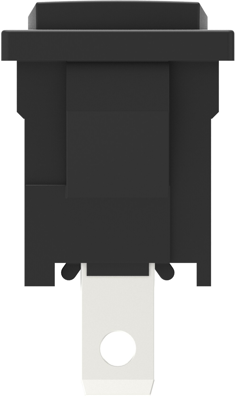

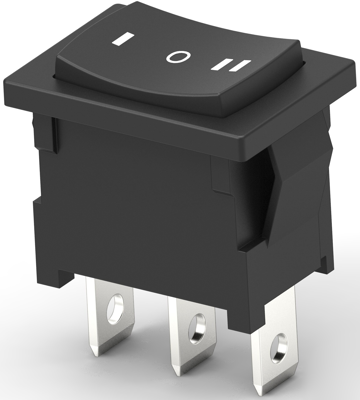

1571079-9 Alcoswitch Rocker Switches Image 1
1571079-9 Alcoswitch Rocker Switches Image 2
1571079-9 Alcoswitch Rocker Switches Image 3
1571079-9 Alcoswitch Rocker Switches Image 4
1571079-9 Alcoswitch Rocker Switches Image 5
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available in 5 Days: 3,958 pcs. - if ordered today
Total Price:
10.23 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0468 €
10 pcs.
1.8921 €
25 pcs.
1.7612 €
50 pcs.
1.5946 €
*incl. VAT plus shipping costs
Subject to prior sale

Rocker Switch, 1571079-9, Alcoswitch

Product Type: Switch, Rocker Switch Type: High Power, Lamp: Without, Rocker Switch LED: Without, Actuator Type: Top, Indicator/Imprint Color: White, Indicator/Imprint Legend: l O ll, Panel Cutout Size: 13 x 19.2 mm, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On Off On, Rocker Switch Voltage Rating: 125 VAC, Beveled Frame Color: Black, Actuator Color: Black, Terminal Tab Width: 4.75 mm, Switch Contact Plating Material: Silver, Rocker Switch Contact Current Rating: 16 A, Termination Type: Quick Connect, Mounting Angle: Vertical, Rocker Switch Mounting Type: Panel, Process Sealed: No, UL Listed: File No. E46765

Technical specifications
Filter Property Value
Latching switching function changeover switch
Printed Yes
min. Geräteausschnitt 13 x 19.2 mm
contact surface silver-plated
illuminated No
Design rectangular
Pin number 1 pole
Breaking capacity 16 A/125 VAC
Shift position On-Off-On
Wall thickness 0.75 to 1.25 mm
Actuator colour black
Connection quick connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
