7-2213766-9 | Alcoswitch

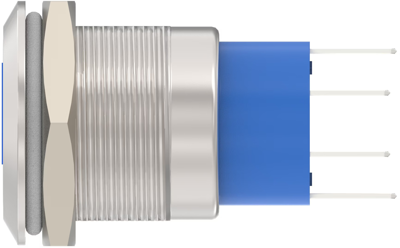

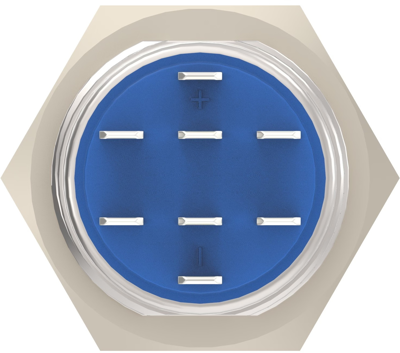

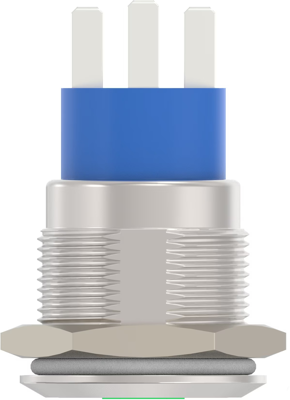

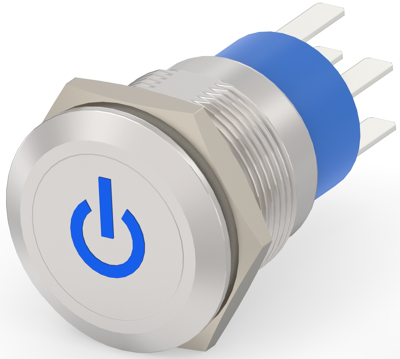

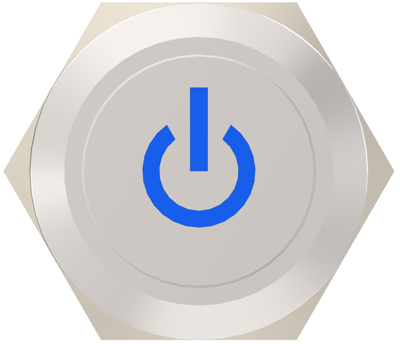

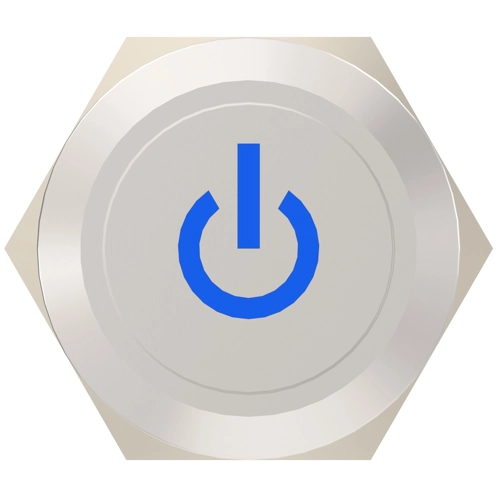

Vandal-proof pushbutton switch, 2 pole, silver, illuminated (blue), 5 A/250 V, mounting Ø 19.2 mm, IP67, 7-2213766-9
Order No.: 38P9221
EAN: 4099889194470
MPN:
7-2213766-9
Unit Price (€ / pc.)
28.1911 € *
Available in 5 Days: 40 pcs. - if ordered today
Total Price:
28.19 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1911 €
2 pcs.
26.3704 €
5 pcs.
24.7758 €
10 pcs.
23.0265 €
*incl. VAT plus shipping costs
Subject to prior sale
Push Button Switch, 7-2213766-9, Alcoswitch
Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Double Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Latching switching function | latching | |
| Wall thickness | 10 mm | |
| Actuator colour | silver | |
| Pin number | 2 pole | |
| Breaking capacity | 5 A/250 V | |
| contact surface | silver-plated | |
| Farbe der Beleuchtung | blue | |
| Installation diameter | 19.2 mm | |
| Printed | Yes | |
| Protection class | IP67 | |
| Design | round | |
| Vandal-proof | Yes | |
| illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
