5-2213766-9 | Alcoswitch

Pushbutton, 2 pole, silver, illuminated  (blue), 5 A/250 V, mounting Ø 19.2 mm, IP67, 5-2213766-9

Order No.: 38P9232
EAN: 4099889194586
MPN:
5-2213766-9

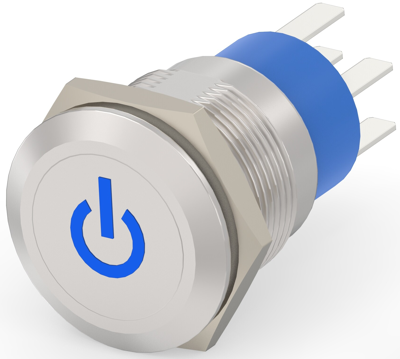

5-2213766-9 Alcoswitch Pushbutton Switches Image 1

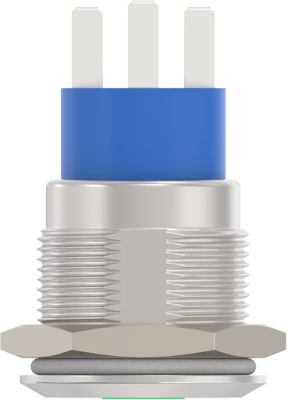

5-2213766-9 Alcoswitch Pushbutton Switches Image 2

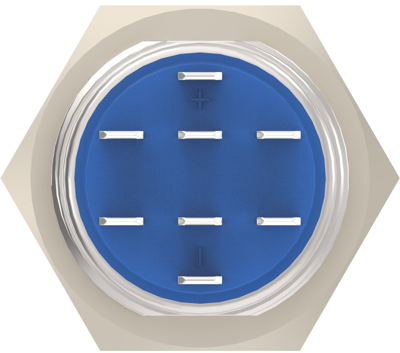

5-2213766-9 Alcoswitch Pushbutton Switches Image 3

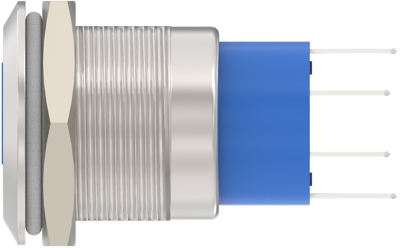

5-2213766-9 Alcoswitch Pushbutton Switches Image 4

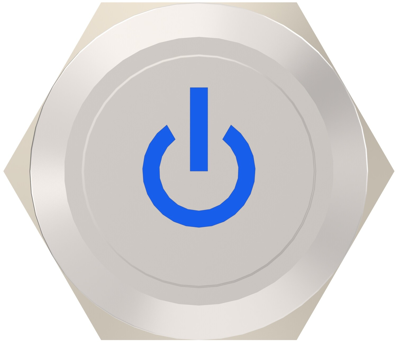

5-2213766-9 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
18.9686 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,896.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
18.9686 €

Push Button Switch, 5-2213766-9, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Double Pole - Single Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Vandal-proof Yes
Printed Yes
Wall thickness 10 mm
Installation diameter 19.2 mm
contact surface silver-plated
Breaking capacity 5 A/250 V
Actuator colour silver
Farbe der Beleuchtung blue
Pin number 2 pole
Design round
illuminated Yes
Connection solder lug
Protection class IP67
Latching switching function groping
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
