3-2213767-5 | Alcoswitch

Vandal-proof pushbutton switch, 1 pole, silver, illuminated  (green), 5 A/250 V, mounting Ø 19.2 mm, IP67, 3-2213767-5

Order No.: 38P9240
EAN: 4099889194661
MPN:
3-2213767-5

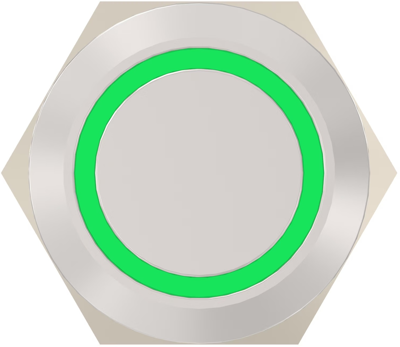

3-2213767-5 Alcoswitch Pushbutton Switches Image 1

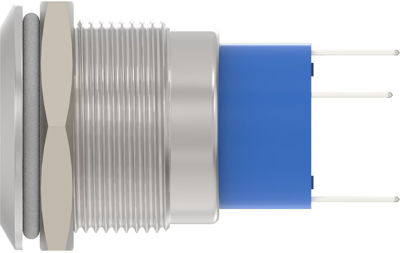

3-2213767-5 Alcoswitch Pushbutton Switches Image 2

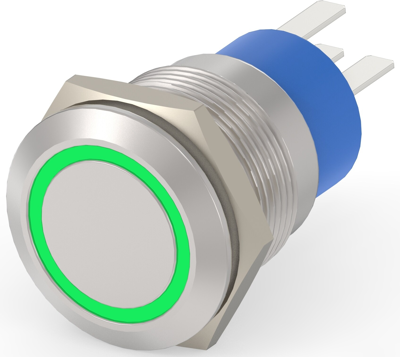

3-2213767-5 Alcoswitch Pushbutton Switches Image 3

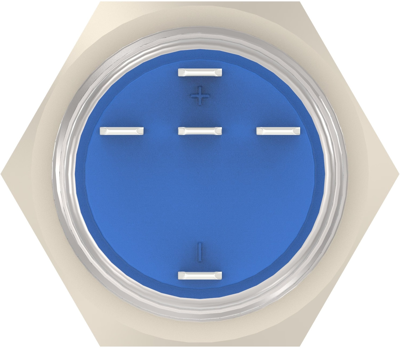

3-2213767-5 Alcoswitch Pushbutton Switches Image 4

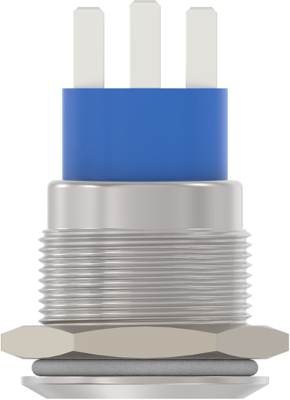

3-2213767-5 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
25.4898 € *
Available in 5 Days: 63 pcs. - if ordered today
Total Price:
25.49 € *
Price list
Quantity
Price per unit*
1 pcs.
25.4898 €
5 pcs.
24.1689 €
10 pcs.
22.6100 €
25 pcs.
20.6108 €
*incl. VAT plus shipping costs
Subject to prior sale

Push Button Switch, 3-2213767-5, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Filter Property Value
Farbe der Beleuchtung green
Latching switching function latching
Printed No
Vandal-proof Yes
contact surface silver-plated
illuminated Yes
Protection class IP67
Design round
Installation diameter 19.2 mm
Pin number 1 pole
Breaking capacity 5 A/250 V
Wall thickness 10 mm
Actuator colour silver
Connection solder lug
Logistics
Property Value
Country of origin TH
Customs tariff number 85365080
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
