3-2213767-3 | Alcoswitch

Vandal-proof pushbutton switch, 1 pole, silver, illuminated  (green), 5 A/250 V, mounting Ø 19.2 mm, IP67, 3-2213767-3

Order No.: 38P9239
EAN: 4099889194654
MPN:
3-2213767-3

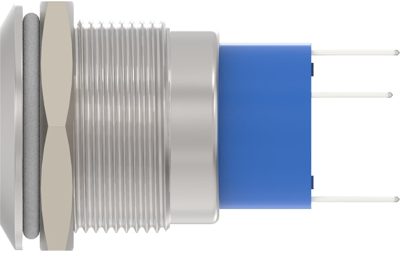

3-2213767-3 Alcoswitch Pushbutton Switches Image 1

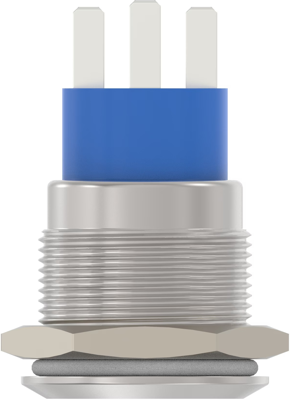

3-2213767-3 Alcoswitch Pushbutton Switches Image 2

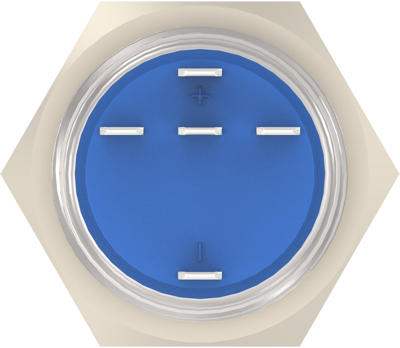

3-2213767-3 Alcoswitch Pushbutton Switches Image 3

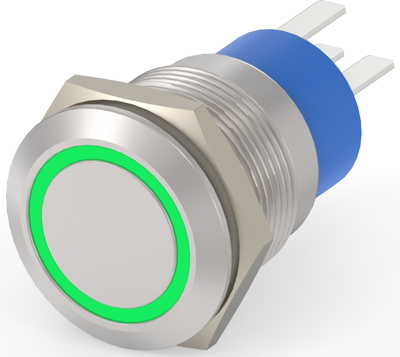

3-2213767-3 Alcoswitch Pushbutton Switches Image 4

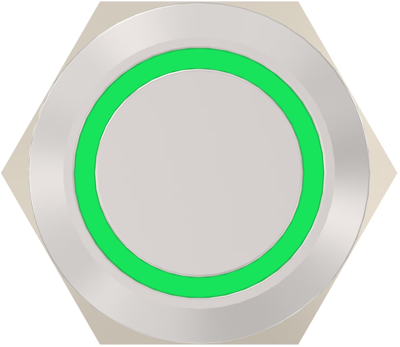

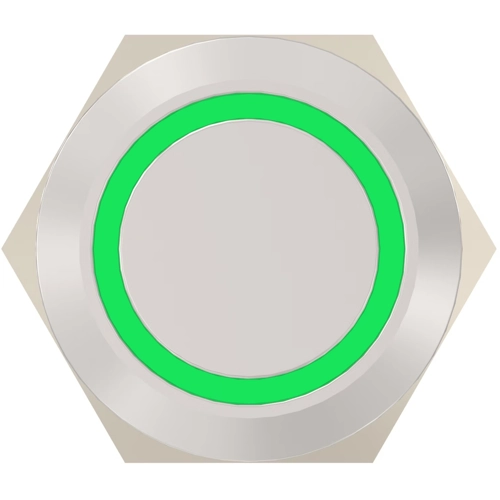

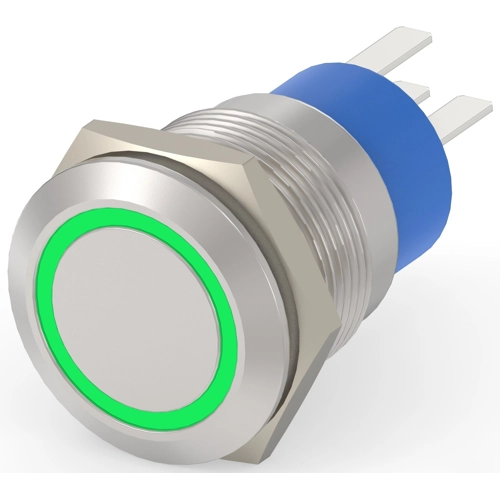

3-2213767-3 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
24.7520 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
24.75 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7520 €
5 pcs.
23.4668 €
10 pcs.
21.9555 €
25 pcs.
20.0158 €
*incl. VAT plus shipping costs
Subject to prior sale

Push Button Switch, 3-2213767-3, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Filter Property Value
Pin number 1 pole
Actuator colour silver
Protection class IP67
Vandal-proof Yes
Latching switching function latching
Farbe der Beleuchtung green
Connection solder lug
illuminated Yes
Breaking capacity 5 A/250 V
Design round
Wall thickness 10 mm
Printed No
Installation diameter 19.2 mm
contact surface silver-plated
Logistics
Property Value
Country of origin TH
Customs tariff number 85365080
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
