3-2213766-5 | Alcoswitch

Vandal-proof pushbutton switch, 1 pole, silver, illuminated  (green), 5 A/250 V, mounting Ø 19.2 mm, IP67, 3-2213766-5

Order No.: 38P9250
EAN: 4099889194760
MPN:
3-2213766-5

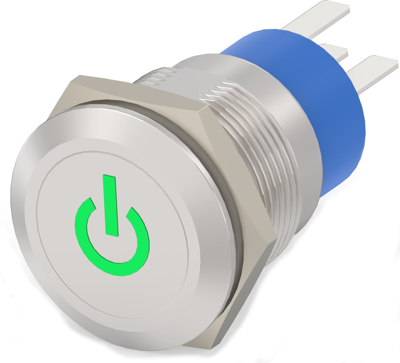

3-2213766-5 Alcoswitch Pushbutton Switches Image 1

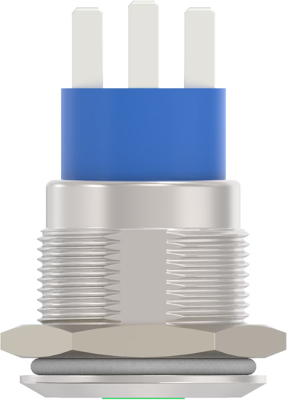

3-2213766-5 Alcoswitch Pushbutton Switches Image 2

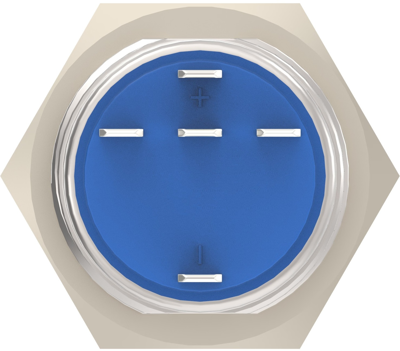

3-2213766-5 Alcoswitch Pushbutton Switches Image 3

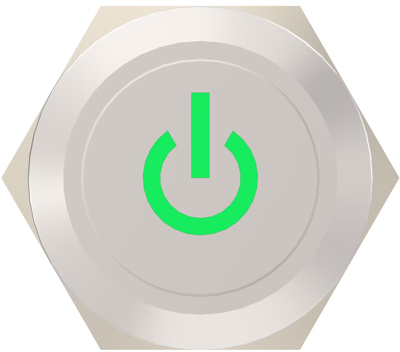

3-2213766-5 Alcoswitch Pushbutton Switches Image 4

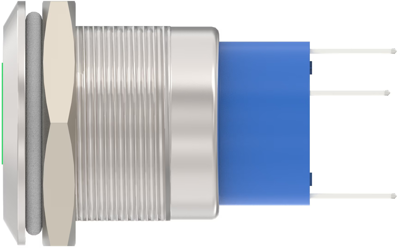

3-2213766-5 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
14.6251 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,462.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
14.6251 €

Push Button Switch, 3-2213766-5, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Filter Property Value
Actuator colour silver
Installation diameter 19.2 mm
Pin number 1 pole
Connection solder lug
Latching switching function latching
illuminated Yes
Protection class IP67
Breaking capacity 5 A/250 V
Design round
contact surface silver-plated
Printed Yes
Wall thickness 10 mm
Vandal-proof Yes
Farbe der Beleuchtung green
Logistics
Property Value
Country of origin TH
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
