3-2213766-3 | Alcoswitch

Pushbutton switch, 1 pole, silver, illuminated  (green), 5 A/250 V, mounting Ø 19.2 mm, IP67, 3-2213766-3

Order No.: 38P9249
EAN: 4099889194753
MPN:
3-2213766-3

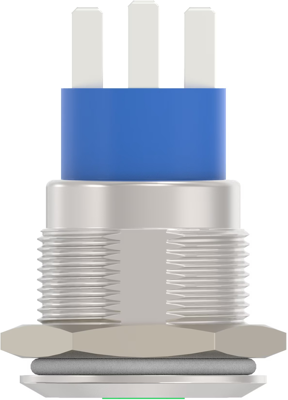

3-2213766-3 Alcoswitch Pushbutton Switches Image 1

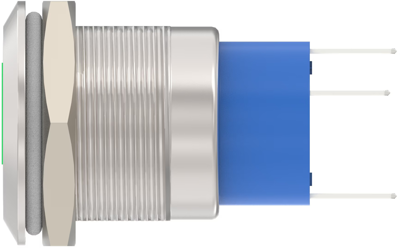

3-2213766-3 Alcoswitch Pushbutton Switches Image 2

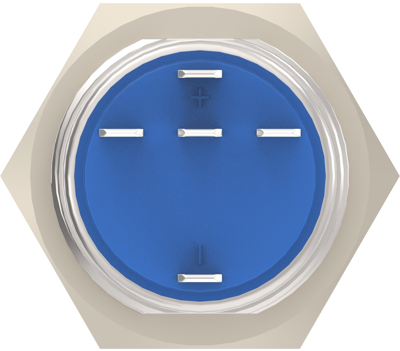

3-2213766-3 Alcoswitch Pushbutton Switches Image 3

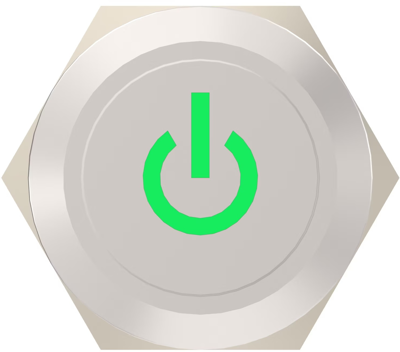

3-2213766-3 Alcoswitch Pushbutton Switches Image 4

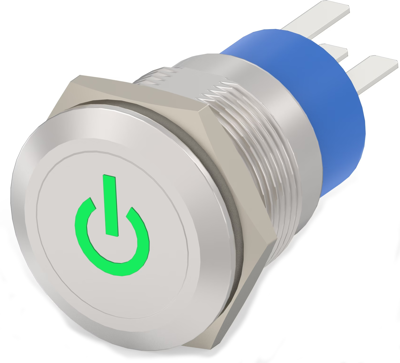

3-2213766-3 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
20.9797 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
20.98 € *
Price list
Quantity
Price per unit*
1 pcs.
20.9797 €
10 pcs.
19.3018 €
25 pcs.
17.3621 €
50 pcs.
15.6247 €
*incl. VAT plus shipping costs
Subject to prior sale

Push Button Switch, 3-2213766-3, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 3 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Installation diameter 19.2 mm
Printed Yes
Breaking capacity 5 A/250 V
illuminated Yes
Vandal-proof Yes
Connection solder lug
Actuator colour silver
Farbe der Beleuchtung green
contact surface silver-plated
Pin number 1 pole
Protection class IP67
Design round
Wall thickness 10 mm
Latching switching function latching
Logistics
Country of origin TH
Customs tariff number 85365080
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
