2342838-2 | Alcoswitch

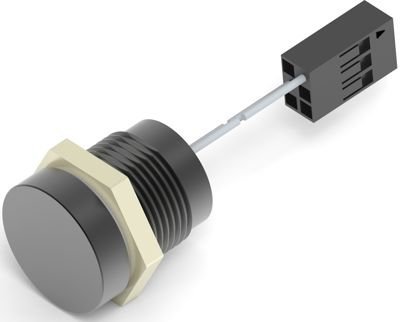

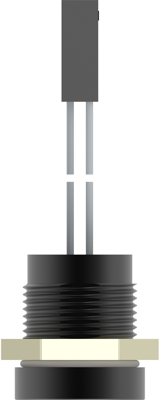

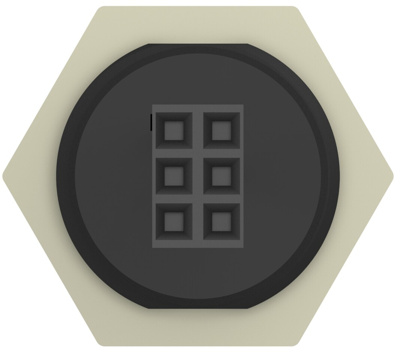

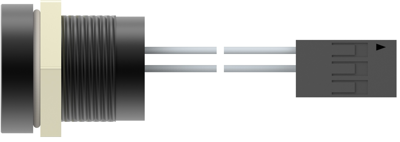

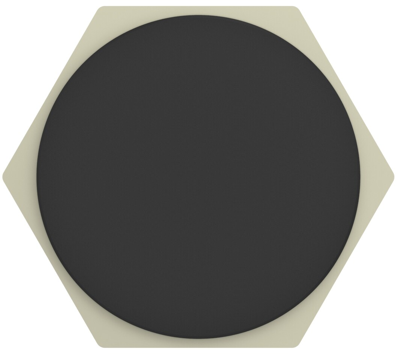

Vandal-proof pushbutton, 1 pole, black, unlit , 1 A/24 VDC, mounting Ø 16 mm, IP68, 2342838-2
Unit Price (€ / pc.)
55.7039 € *
Available in 5 Days: 85 pcs. - if ordered today
Total Price:
55.70 € *
Price list
Quantity
Price per unit*
1 pcs.
55.7039 €
2 pcs.
52.1101 €
5 pcs.
48.9566 €
10 pcs.
45.5056 €
*incl. VAT plus shipping costs
Subject to prior sale
Push button switch, 2342838-2, Alcoswitch
Push button switch, Single Pole-Single Throw Configuration (Pole-Throw), Anti-Vandal, 1 Actuator, Extended Actuator Profile.
Features
- High strength
- Corrosion resistance
- Easy heat dissipation
- Momentary actuation
- Light weight
Applications
- Industrial Control
- Communication Equipment
- Medical Equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 1 A/24 VDC | |
| Vandal-proof | Yes | |
| Actuator colour | black | |
| Connection | wire connection | |
| Printed | No | |
| Latching switching function | groping | |
| Design | round | |
| Protection class | IP68 | |
| Installation diameter | 16 mm | |
| Wall thickness | 8 mm | |
| Pin number | 1 pole | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
