2342836-7 | Alcoswitch

Switch, 1 pole, silver, illuminated  (RGB), 1 A/24 VDC, mounting Ø 22.2 mm, IP68, 2342836-7

Order No.: 71P6738
MPN:
2342836-7
Series: AVC22

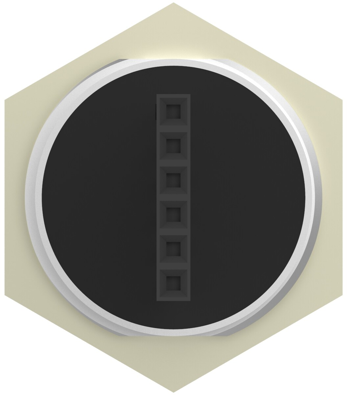

2342836-7 Alcoswitch Pushbutton Switches Image 1

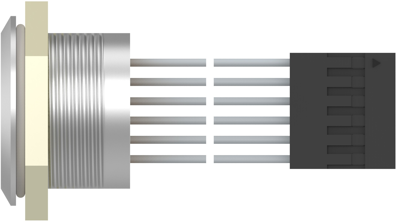

2342836-7 Alcoswitch Pushbutton Switches Image 2

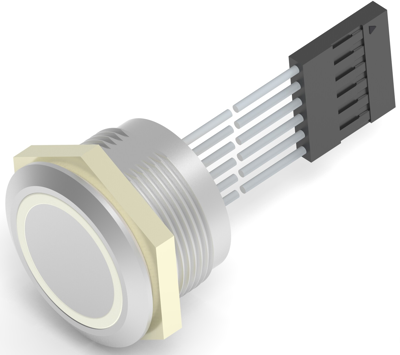

2342836-7 Alcoswitch Pushbutton Switches Image 3

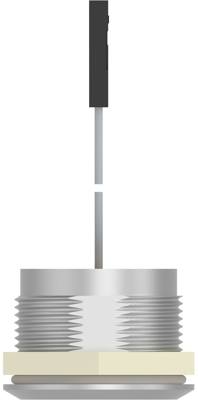

2342836-7 Alcoswitch Pushbutton Switches Image 4
Image may differ
Unit Price (€ / pc.)
61.4159 € *
Available: 0 pcs.
Available in 5 Days: 164 pcs.
Leadtime: 18 Weeks **
Total Price:
61.42 € *
Price list
Quantity
Price per unit*
1 pcs.
61.4159 €
5 pcs.
57.1081 €
10 pcs.
52.5504 €
25 pcs.
48.3378 €
*incl. VAT plus shipping costs
**Subject to prior sale

Push button switch, 2342836-7, Alcoswitch

Push button switch, Single Pole-Single Throw Configuration (Pole-Throw), Anti-Vandal, 1 Actuator, Flush actuator profile.

Features

  • Zero actuation force
  • Flat button type
  • Independent LED control

Applications

  • Bath Accessories
  • Automotive Electronics
  • Strict Access Control Systems
  • Shipping Equipment
  • Medical Equipment
  • Horticulture
Technical specifications
Connection Drahtanschluss
Design rund
Printed No
illuminated Yes
Installation diameter 22.2 mm
Actuator colour silber
Farbe der Beleuchtung RGB
Pin number 1-polig
Latching switching function tastend
Breaking capacity 1 A/24 VDC
Protection class IP68
Vandal-proof Yes
Wall thickness 10 mm
Logistics
Country of origin TW
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
