2342835-2 | Alcoswitch

Switch, 1 pole, silver, illuminated  (red), 1 A/24 VDC, mounting Ø 19.2 mm, IP68, 2342835-2

Order No.: 71P6728
MPN:
2342835-2
Series: AVC19

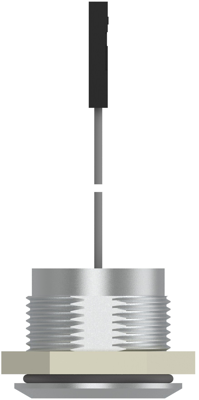

2342835-2 Alcoswitch Pushbutton Switches Image 1

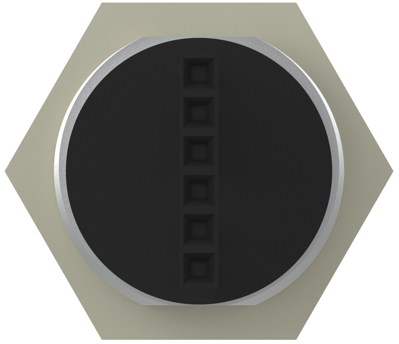

2342835-2 Alcoswitch Pushbutton Switches Image 2

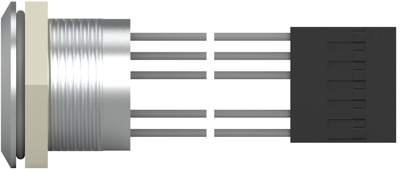

2342835-2 Alcoswitch Pushbutton Switches Image 3

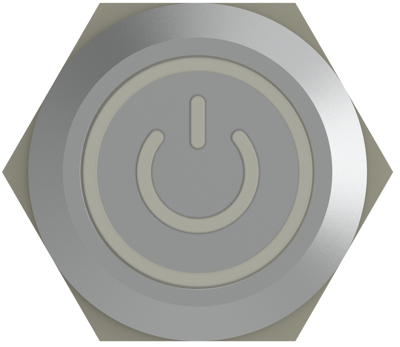

2342835-2 Alcoswitch Pushbutton Switches Image 4

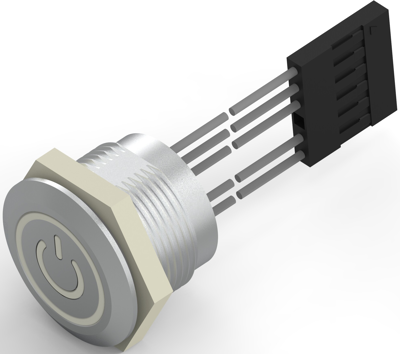

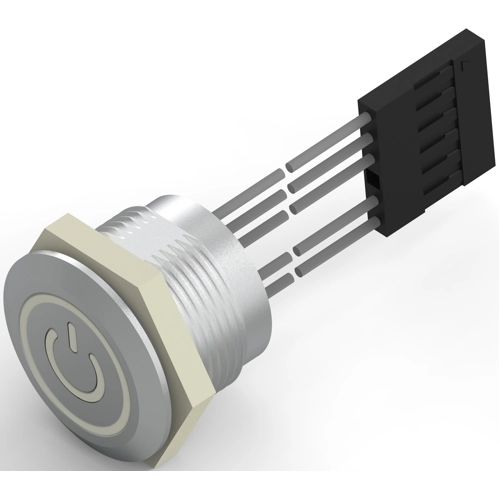

2342835-2 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
60.5591 € *
Available in 5 Days: 103 pcs. - if ordered today
Total Price:
60.56 € *
Price list
Quantity
Price per unit*
1 pcs.
60.5591 €
5 pcs.
56.3227 €
10 pcs.
51.8126 €
25 pcs.
47.6714 €
*incl. VAT plus shipping costs
Subject to prior sale

Push button switch, 2342835-2, Alcoswitch

Push button switch, Single Pole-Single Throw Configuration (Pole-Throw), Anti-Vandal, 1 Actuator, Flush actuator profile.

Features

  • Zero actuation force
  • Flat button type
  • Independent LED control

Applications

  • Bath Accessories
  • Automotive Electronics
  • Strict Access Control Systems
  • Shipping Equipment
  • Medical Equipment
  • Horticulture
Technical specifications
Vandal-proof Yes
Printed No
Wall thickness 10 mm
Installation diameter 19.2 mm
Breaking capacity 1 A/24 VDC
Actuator colour silver
Farbe der Beleuchtung red
Pin number 1 pole
Design round
illuminated Yes
Connection wire connection
Protection class IP68
Latching switching function latching
Logistics
Country of origin TW
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
