1-2316366-7 | Alcoswitch

Switch, 2 pole, silver, illuminated  (red/yellow), 3 A/250 VAC, mounting Ø 17.7 mm, IP67, 1-2316366-7

Order No.: 71P1555
EAN: 4099891065799
MPN:
1-2316366-7
Series: AV19

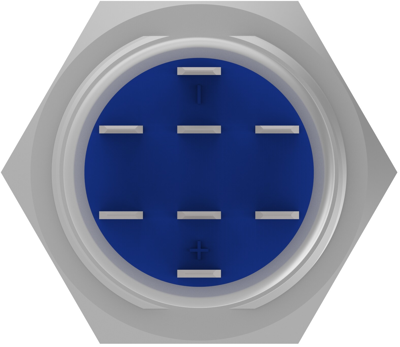

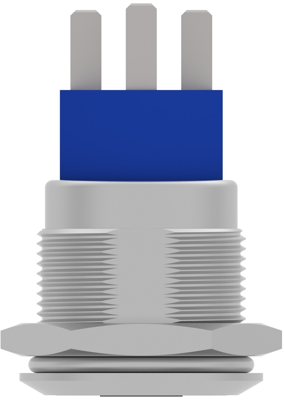

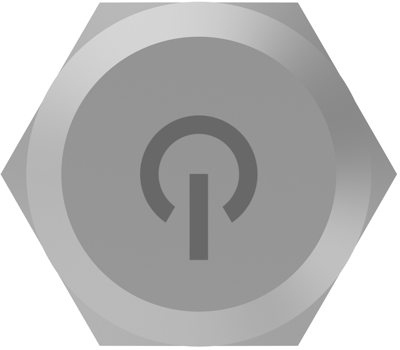

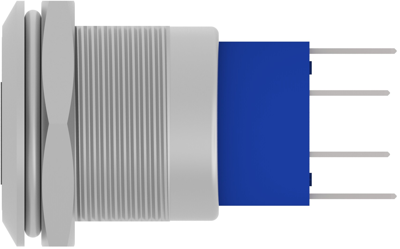

1-2316366-7 Alcoswitch Pushbutton Switches Image 1
1-2316366-7 Alcoswitch Pushbutton Switches Image 2
1-2316366-7 Alcoswitch Pushbutton Switches Image 3
1-2316366-7 Alcoswitch Pushbutton Switches Image 4
Image may differ
Unit Price (€ / pc.)
25.7754 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
25.78 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7754 €
10 pcs.
23.7167 €
25 pcs.
21.3367 €
50 pcs.
19.2066 €
*incl. VAT plus shipping costs
Subject to prior sale

Push button switch, 1-2316366-7, Alcoswitch

The 1-2316366-7 is designed for security and reliability in a variety of panel mount industrial and building applications. This product achieves a vandal proof solution with a jam nut accessible for rear of the panel.

Applications

  • Industrial equipment
  • Elevators/Escalators
  • Instrumentation
  • Communication equipment
  • Control equipment
Technical specifications
Vandal-proof Yes
Printed No
Wall thickness 10 mm
Installation diameter 17.7 mm
contact surface silver-plated
Breaking capacity 3 A/250 VAC
Actuator colour silver
Farbe der Beleuchtung red/yellow
Pin number 2 pole
Design round
illuminated Yes
Connection solder lug
Protection class IP67
Latching switching function groping
Logistics
Country of origin TW
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
