1-2213766-3 | Alcoswitch

Vandal-proof pushbutton, 1 pole, silver, illuminated  (green), 5 A/250 V, mounting Ø 19.2 mm, IP67, 1-2213766-3

Order No.: 38P9266
EAN: 4099889194920
MPN:
1-2213766-3

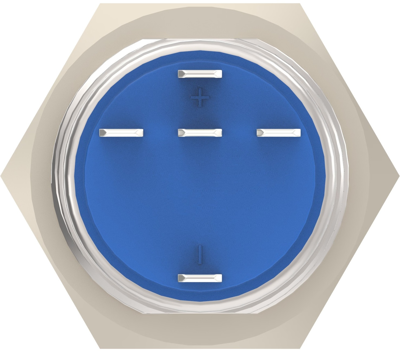

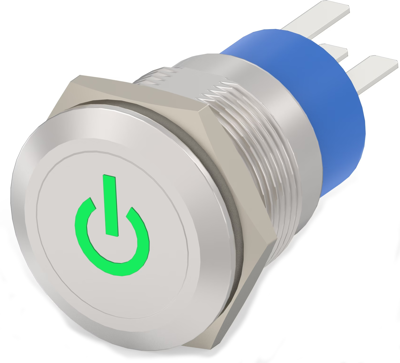

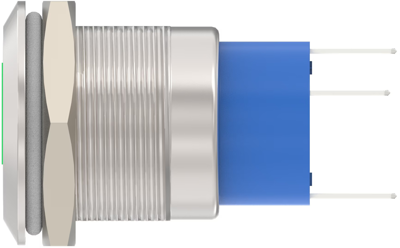

1-2213766-3 Alcoswitch Pushbutton Switches Image 1
1-2213766-3 Alcoswitch Pushbutton Switches Image 2
1-2213766-3 Alcoswitch Pushbutton Switches Image 3
1-2213766-3 Alcoswitch Pushbutton Switches Image 4
1-2213766-3 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
23.4549 € *
Available in 5 Days: 116 pcs. - if ordered today
Total Price:
164.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
7 pcs.
23.4549 €

Push Button Switch, 1-2213766-3, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Filter Property Value
Wall thickness 10 mm
Installation diameter 19.2 mm
illuminated Yes
contact surface silver-plated
Farbe der Beleuchtung green
Actuator colour silver
Printed Yes
Protection class IP67
Pin number 1 pole
Breaking capacity 5 A/250 V
Latching switching function groping
Vandal-proof Yes
Connection solder lug
Design round
Logistics
Property Value
Country of origin US
Customs tariff number 85365080
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
