1-2213764-9 | Alcoswitch

Vandal-proof pushbutton, 1 pole, silver, illuminated  (blue), 5 A/250 V, mounting Ø 19.2 mm, IP67, 1-2213764-9

Order No.: 38P9255
EAN: 4099889194814
MPN:
1-2213764-9

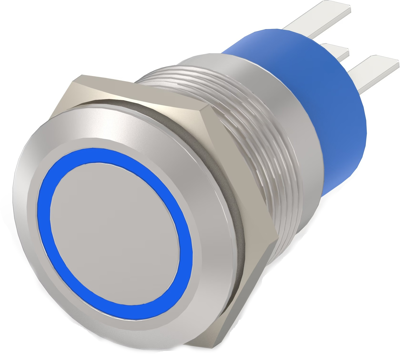

1-2213764-9 Alcoswitch Pushbutton Switches Image 1

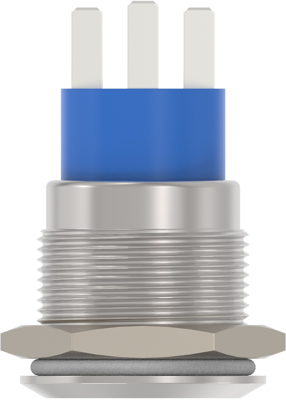

1-2213764-9 Alcoswitch Pushbutton Switches Image 2

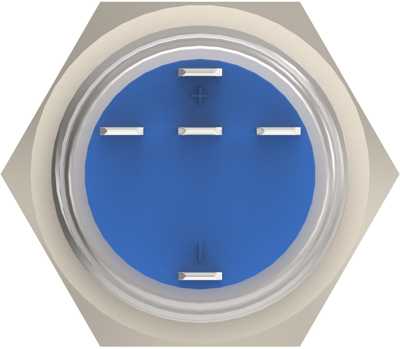

1-2213764-9 Alcoswitch Pushbutton Switches Image 3

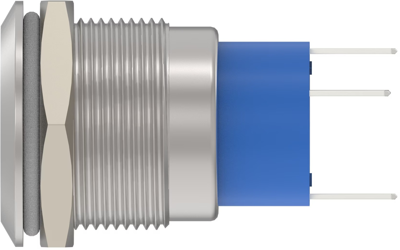

1-2213764-9 Alcoswitch Pushbutton Switches Image 4

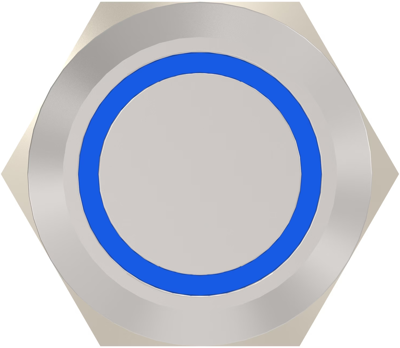

1-2213764-9 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
26.9178 € *
Available in 5 Days: 72 pcs. - if ordered today
Total Price:
26.92 € *
Price list
Quantity
Price per unit*
1 pcs.
26.9178 €
5 pcs.
25.5255 €
10 pcs.
23.8714 €
25 pcs.
21.7651 €
*incl. VAT plus shipping costs
Subject to prior sale

Push Button Switch, 1-2213764-9, Alcoswitch

Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.

Technical specifications
Filter Property Value
Wall thickness 10 mm
Design round
Printed No
Pin number 1 pole
illuminated Yes
Connection solder lug
Latching switching function groping
Breaking capacity 5 A/250 V
Vandal-proof Yes
Installation diameter 19.2 mm
contact surface silver-plated
Protection class IP67
Farbe der Beleuchtung blue
Actuator colour silver
Logistics
Property Value
Customs tariff number 85365080
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
