203264 | AK-Nord
Serial LAN Deviceserver
No longer in assortment

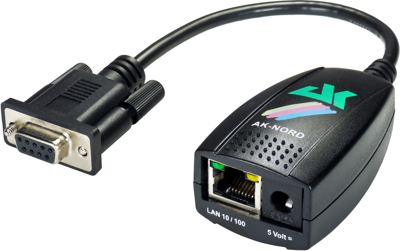

Serial LAN device server, 203264, AK-Nord
The ConLine-V24-SXL device server enables you to connect serial terminals and machines with an RS232 / V24 interface to the Ethernet network and to access and control them via the Internet or LAN. The ConLine-V24-SXL is a small and compact cable solution that leaves nothing to be desired. The serial interface can be set individually and data rates of up to 2,500,000 Baud are possible. In addition, emulations such as modem, auto-connect, connect on data, TCP / UDP client with up to 10 parallel connections, TCP/UDP server, tunnel mode with transmission of signal states and settings, e-mail client with sending and receiving of e-mails can be set additionally. In addition, the data connection can be secured against unwanted access by third parties using the integrated SSL/TLS data encryption.
Technical Data
- Temperature range: -40°C...+ 70°C
- Power supply: Power supply 5 Volt / 1A - RS232
- Baud rate: up to 2,5MBaud
- DataBits: 7,8
Connection | Sub-D socket 9 pole | |
Version | Serial LAN device server |
Country of origin | DE |
Customs tariff number | 85176200 |
MSL | MSL 1 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
