RB4 | Aero-Motive

Retractor, RB4, load capacity (min/max) 0.9 to 1.8 kg, stroke 1.6 m, without locking, 1301730048

Order No.: 12P6630
EAN: 4099891450304
MPN:
RB4
1301730048
Series: RB

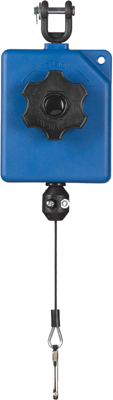

RB4 Aero-Motive Spring Balancers Image 1

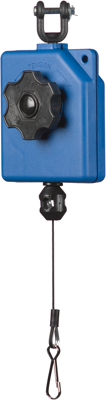

RB4 Aero-Motive Spring Balancers Image 2

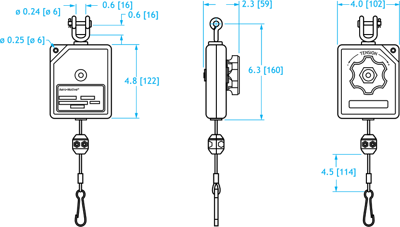

RB4 Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
55.0970 € *
Available: 743 pcs.
Total Price:
55.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
55.0970 €

Retractor, 1301730048, Aero-Motive

Retractor RB4 Aero-Motive, Weight Range 2-4 lb/0.9-1.8 kg, Cable Travel 5.2 ft/1.6 m

Aero-Motive RB retractors equipped with power springs for excellent ergonomics and long life cycles, are the product of choice in virtually any light assembly applications.

Features

  • Automatic Safety Lock: No
  • Manual Safety Lock: No
  • External Tension Adjustment: Ergo Knob
  • Upper Mount: 360° Swivel
  • Secondary Support: Safety Cable (Optional)
  • Serviceable: No
  • High-Impact ABS Housing
  • Adjustable Cable Stop
  • Braided Nylon Cord
  • Tool Clip for Easy Tool Attachment or Removal
Technical specifications
Filter Property Value
Rope pullout 1.6 m
Shell Material plastic
Suspension Rope PA braided line
Weight 0.5 kg
Spring fracture safety device No
Max Load capacity 1.8 kg
Min Load capacity 0.9 kg
Locking without locking
Manual locking No
Stroke 1.6 m
Product type retractor
Fall protection No
Logistics
Property Value
Customs tariff number 84253900
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
