RB2 | Aero-Motive

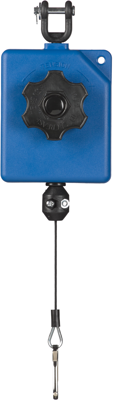

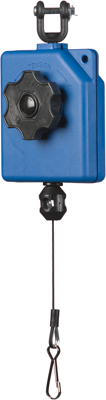

Retractor, RB2, load capacity (min/max) 0.5 to 0.9 kg, stroke 1.6 m, without locking, 1301730036
Unit Price (€ / pc.)
55.0970 € *
Available: 526 pcs.
Retractor, 1301730036, Aero-Motive
Retractor RB2 Aero-Motive, Weight Range 1-2 lb/0.5-0.9 kg, Cable Travel 5.2 ft/1.6 m
Aero-Motive RB retractors equipped with power springs for excellent ergonomics and long life cycles, are the product of choice in virtually any light assembly applications.
Features
- Automatic Safety Lock: No
- Manual Safety Lock: No
- External Tension Adjustment: Ergo Knob
- Upper Mount: 360° Swivel
- Secondary Support: Safety Cable (Optional)
- Serviceable: No
- High-Impact ABS Housing
- Adjustable Cable Stop
- Braided Nylon Cord
- Tool Clip for Easy Tool Attachment or Removal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rope pullout | 1.6 m | |
| Shell Material | plastic | |
| Suspension Rope | PA braided line | |
| Weight | 0.5 kg | |
| Spring fracture safety device | No | |
| Max Load capacity | 0.9 kg | |
| Min Load capacity | 0.5 kg | |
| Locking | without locking | |
| Manual locking | No | |
| Stroke | 1.6 m | |
| Product type | retractor | |
| Fall protection | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
