GM31 | Aero-Motive

Positioner, GM31, load capacity (min/max) 0.5 to 4.5 kg, stroke 1.4 m, without locking, 1301690002

Order No.: 12P6528
EAN: 4099891449537
MPN:
GM31
1301690002
Series: POS

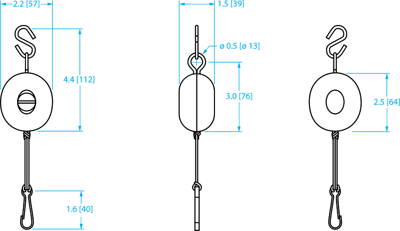

GM31 Aero-Motive Spring Balancers Image 1

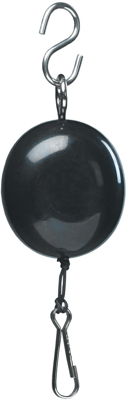

GM31 Aero-Motive Spring Balancers Image 2

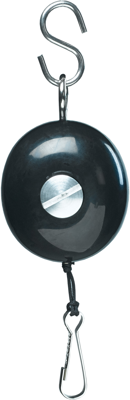

GM31 Aero-Motive Spring Balancers Image 3
GM31 Aero-Motive Spring Balancers Image 4
Image may differ
Unit Price (€ / pc.)
20.8607 € *
Available: 528 pcs.
Next delivery: 3,000 pcs. on 2025-09-19
Total Price:
20.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.8607 €

Positioner, 1301690002, Aero-Motive

Positioner GM31 Aero-Motive, Weight Range 1-10 lb/0.5-4.5 kg, Cable Travel 4.7 ft/1.4 m

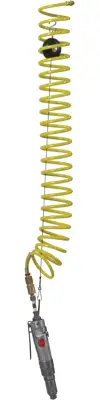

Aero-Motive Positioner GM31 provides a low-cost solution for low-cycle and light-load applications such as lights, heat lamps, and signs without requiring extra force to maintain the established position. GM31 was designed such that its compact size will enable the unit to fit within most industrial air coiled hoses.

Features

  • Automatic Safety Lock: No
  • Manual Safety Lock: No
  • Upper Mount: Fixed S-Hook
  • External Tension Adjustment: Friction Brake
  • Secondary Support: No
  • Serviceable: No
  • High-Impact ABS Housing
  • Durable Nylon Cable
  • Tool Clip for Easy Attachment and Removal
Technical specifications
Filter Property Value
Manual locking No
Spring fracture safety device No
Product type positioner
Locking without locking
Suspension Rope nylon
Min Load capacity 0.5 kg
Weight 0.1 kg
Fall protection No
Stroke 1.4 m
Shell Material plastic
Max Load capacity 4.5 kg
Rope pullout 1.4 m
Logistics
Property Value
Country of origin TW
Customs tariff number 84289090
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform not_relevant
